Image Transfer
Image Transfer Roller
• Do not touch the transfer roller surface with bare hands

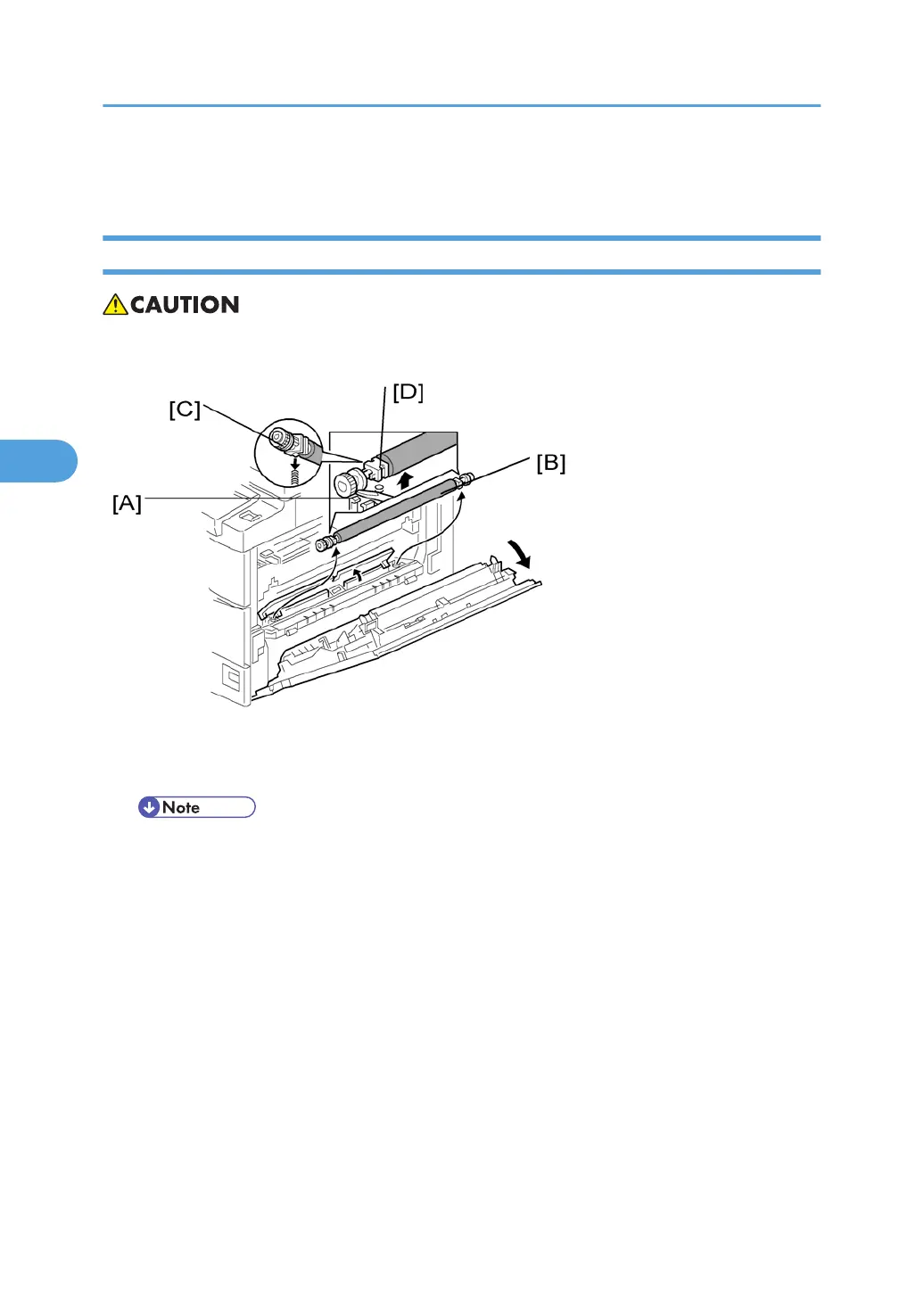

1. Open the right door.
2. Lift the plastic holders [A] with the image transfer roller [B].
• Leave
the springs under the holders. Make sure that the pegs [C] on the holders [D] engage with
the springs when you reassemble.
4. Replacement and Adjustment
120
4
