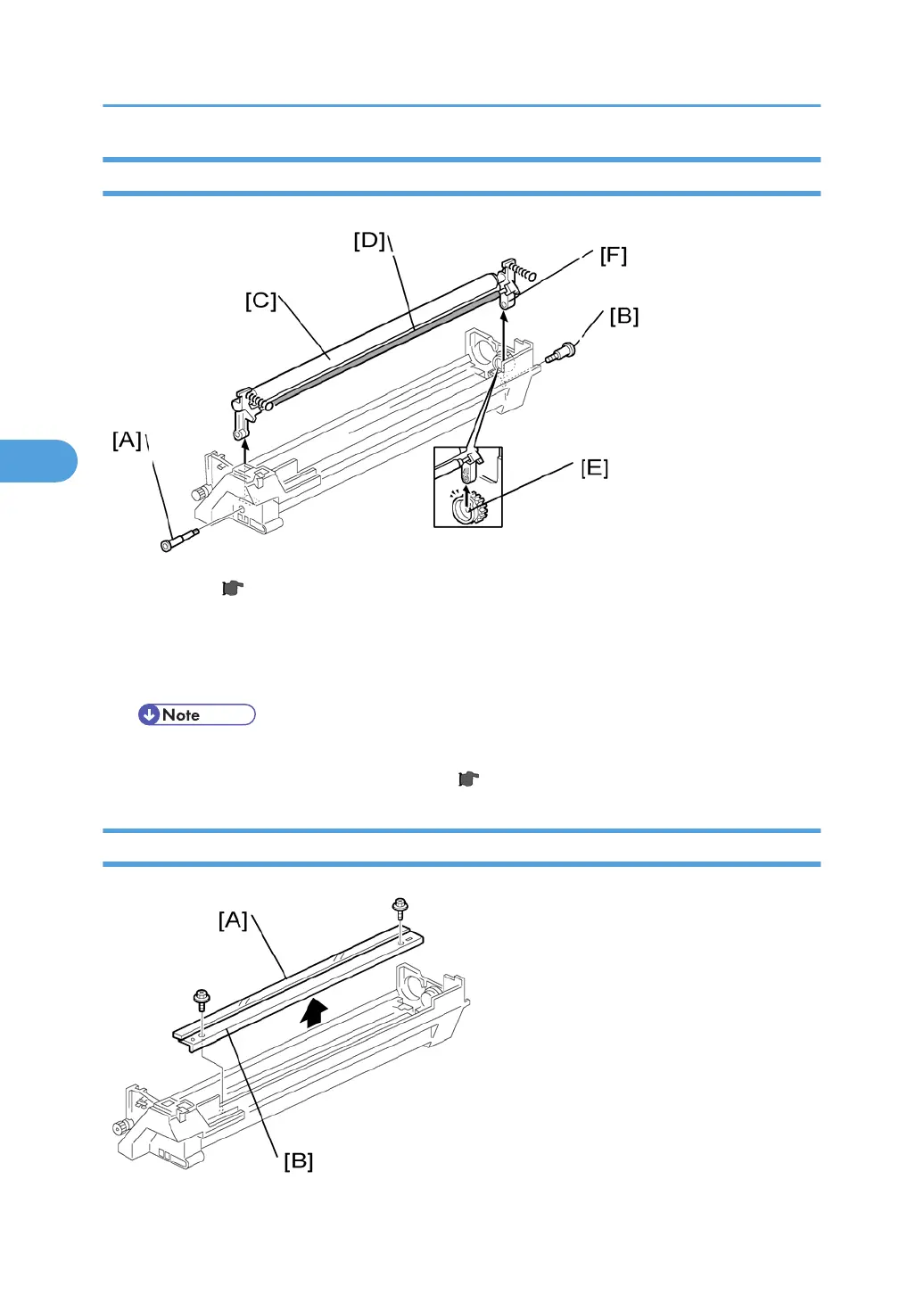

Charge Roller and Cleaning Brush
1. OPC Drum ( p.103)
2.
Holding pin [A]
3.
Stepped screw [B]
4.
Charge roller [C] and cleaning brush [D] (with the holders and springs)
• Turn the gear [E] (as necessary) so that the rear holder [F] comes out.
5. When reassembling, adjust the image quality ( p.106 "After Replacement or Adjustment").
