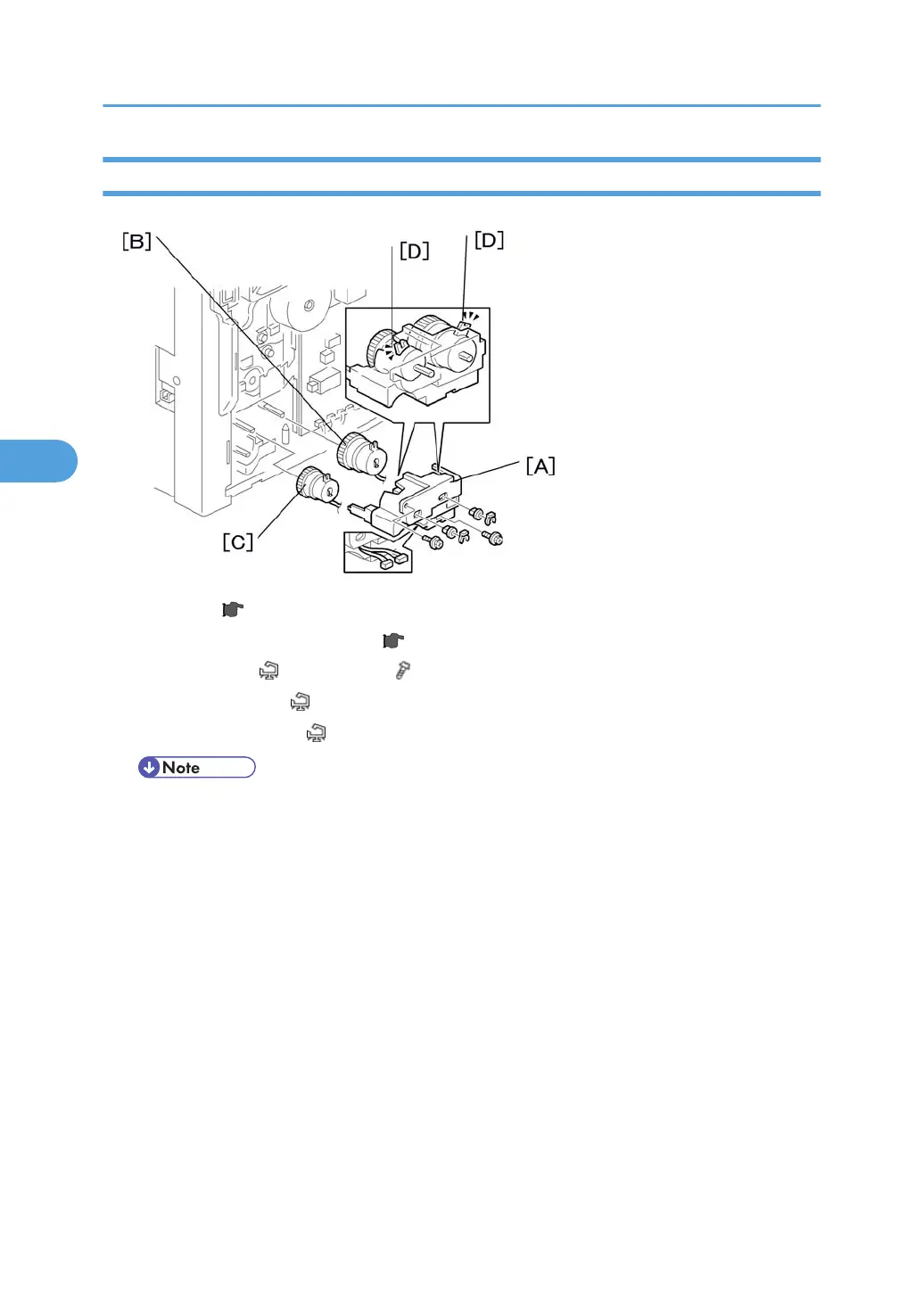

Upper Paper Feed Clutch and By-Pass Feed Clutch
1. Rear cover ( p.76)
2. High-voltage power supply board ( p.133)
3. Clutch cover [A] ( x 2, 2 bushings, x 2 )
4. Paper feed clutch [B] ( x 1)
5. By-pass feed clutch [C] ( x 1)
• Make sure that the rotation-prevention tabs [D] on the clutches fit correctly into the corresponding
openings on the clutch cover when you reinstall.
4. Replacement and Adjustment
116
4
