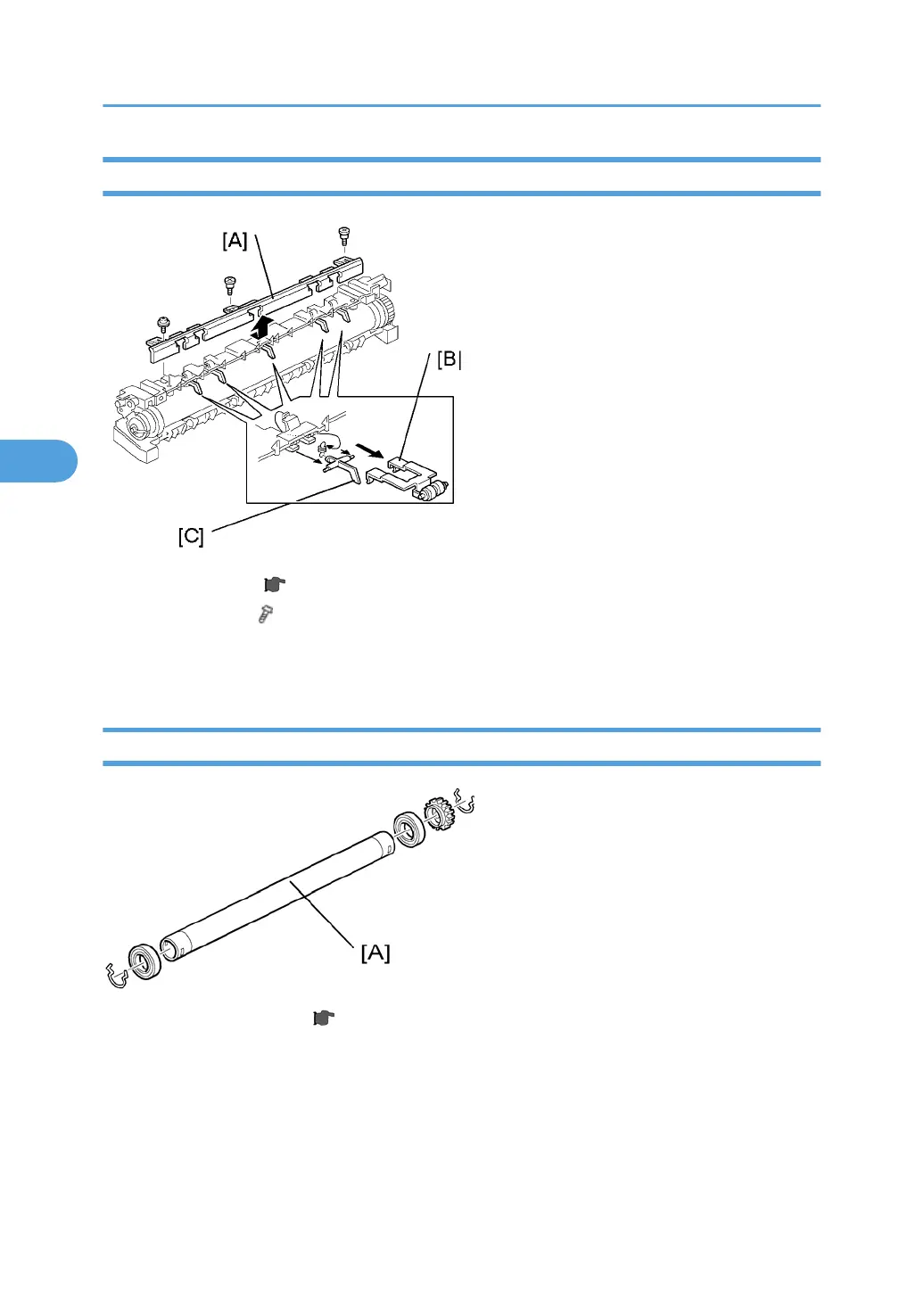

Hot Roller Stripper Pawls
1. Hot roller section ( p.123 "Fusing Lamps")
2. Roller guard [A] ( x 3)
3. Metal holders [B] (1 holder for each)
4. Hot roller stripper pawls [C] (1 spring for each)
Hot Roller
1. Hot roller stripper pawls ( p.124)
2. Hot roller [A] (2 C-rings, 1 gear, 2 bearings)
4. Replacement and Adjustment
124
4
