Ricoh Aficio MP 1600L2 User Manual

Key Counter Installation
• Unplug the machine power cord before starting the following procedure.
1. Remove the left cover.
2. Remove the rear cover.

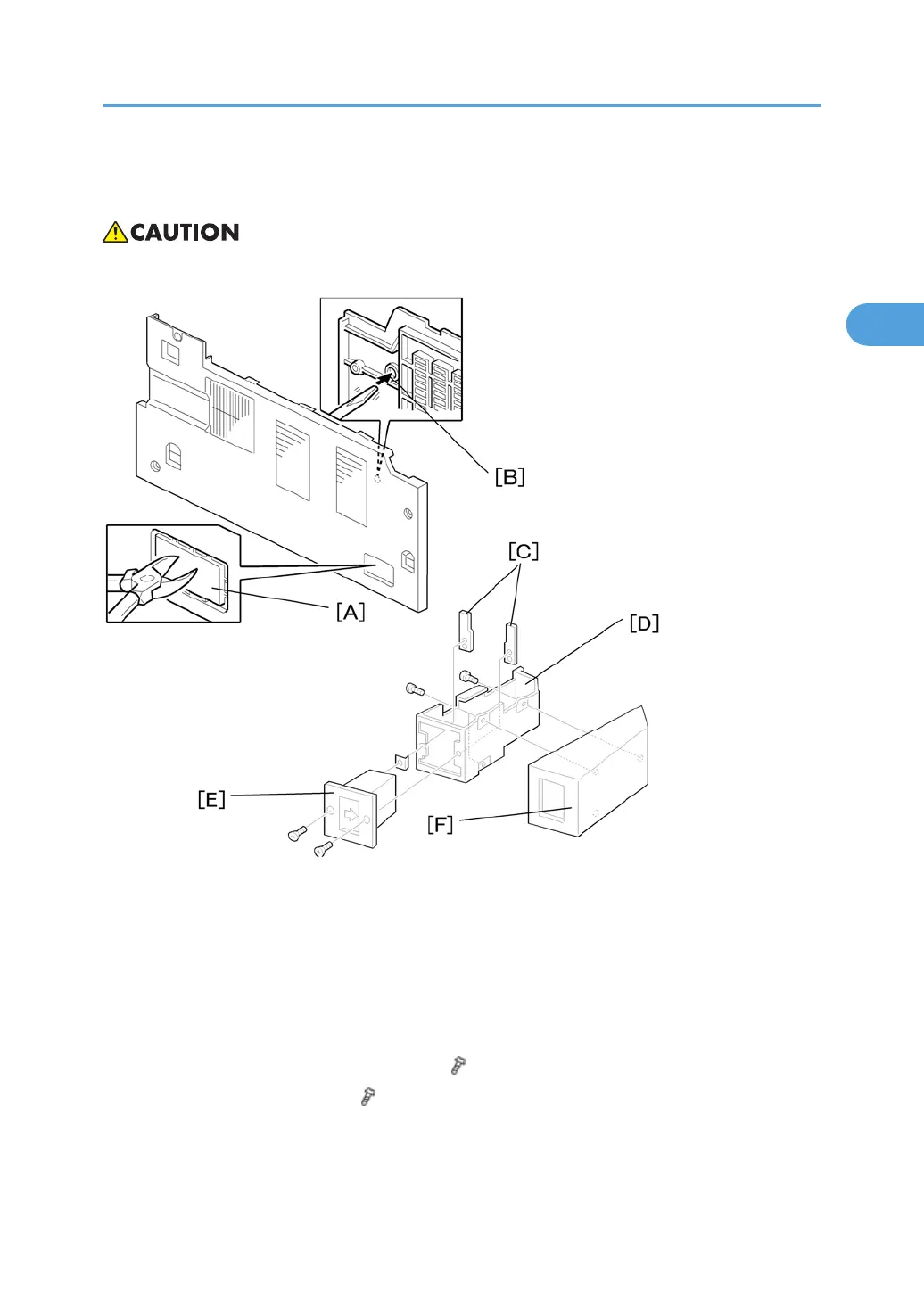

3. Cut the cap [A] with nippers.
4.
Punch out the small hole [B] using a screwdriver.
5. Hold the key counter plate nuts [C] on the inside of the key counter bracket [D] and insert the key
counter holder [E].
6. Secure the key counter holder to the bracket (
x 2).
7. Install the key counter cover [F] ( x 2).
Key Counter Installation
57
2
