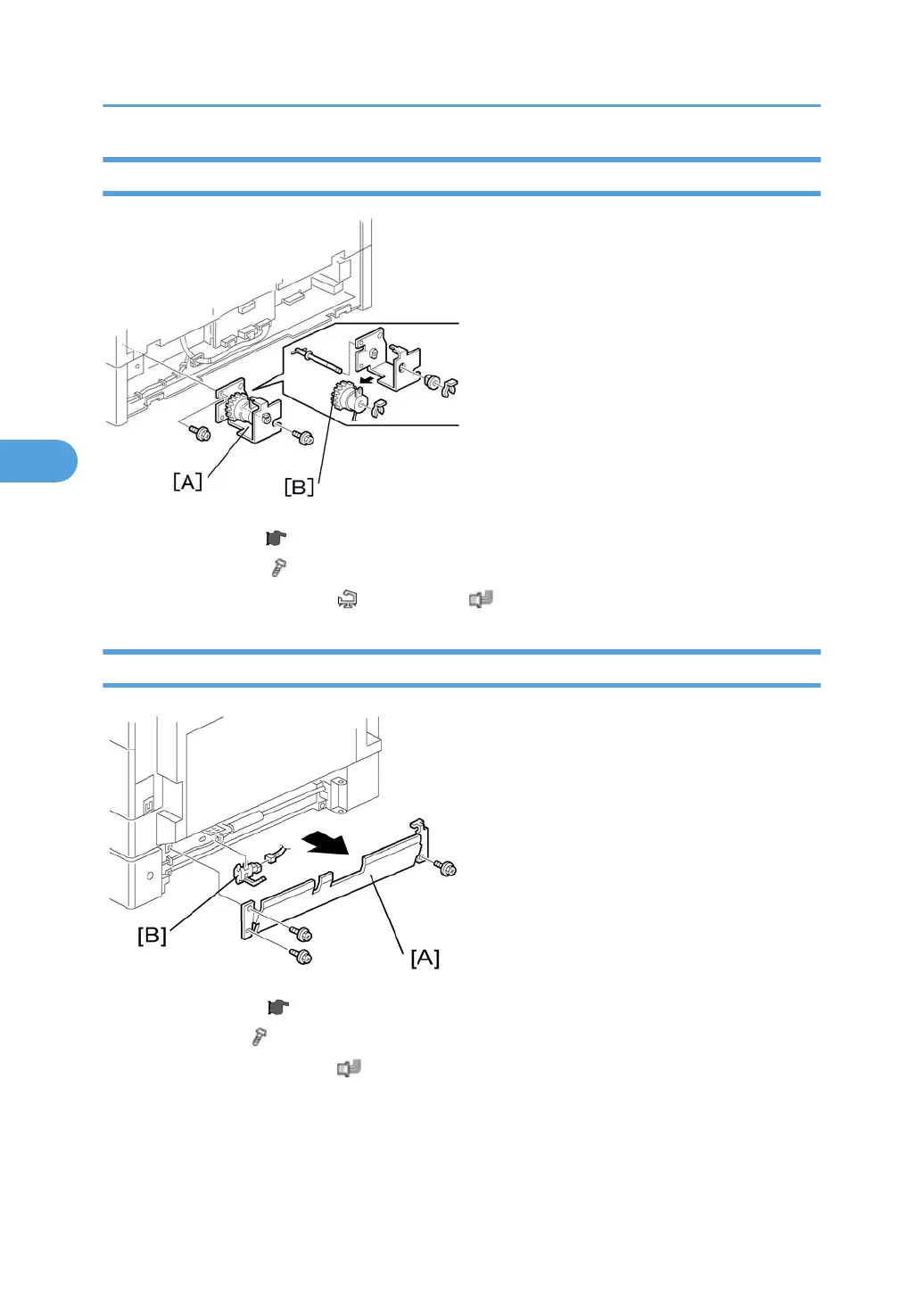

Lower Paper Feed Clutch (Two-tray Models Only)
1. Rear lower cover ( p.77)
2. Clutch bracket [A] ( x 2)
3. Lower paper feed clutch [B] ( x 2, 1 bushing, x 1)
Vertical Transport Sensor (Two-tray Models Only)
1. Right lower cover ( p.83)
2. Metal plate [A] ( x 3)
3. Vertical transport sensor [B] ( x 1)
