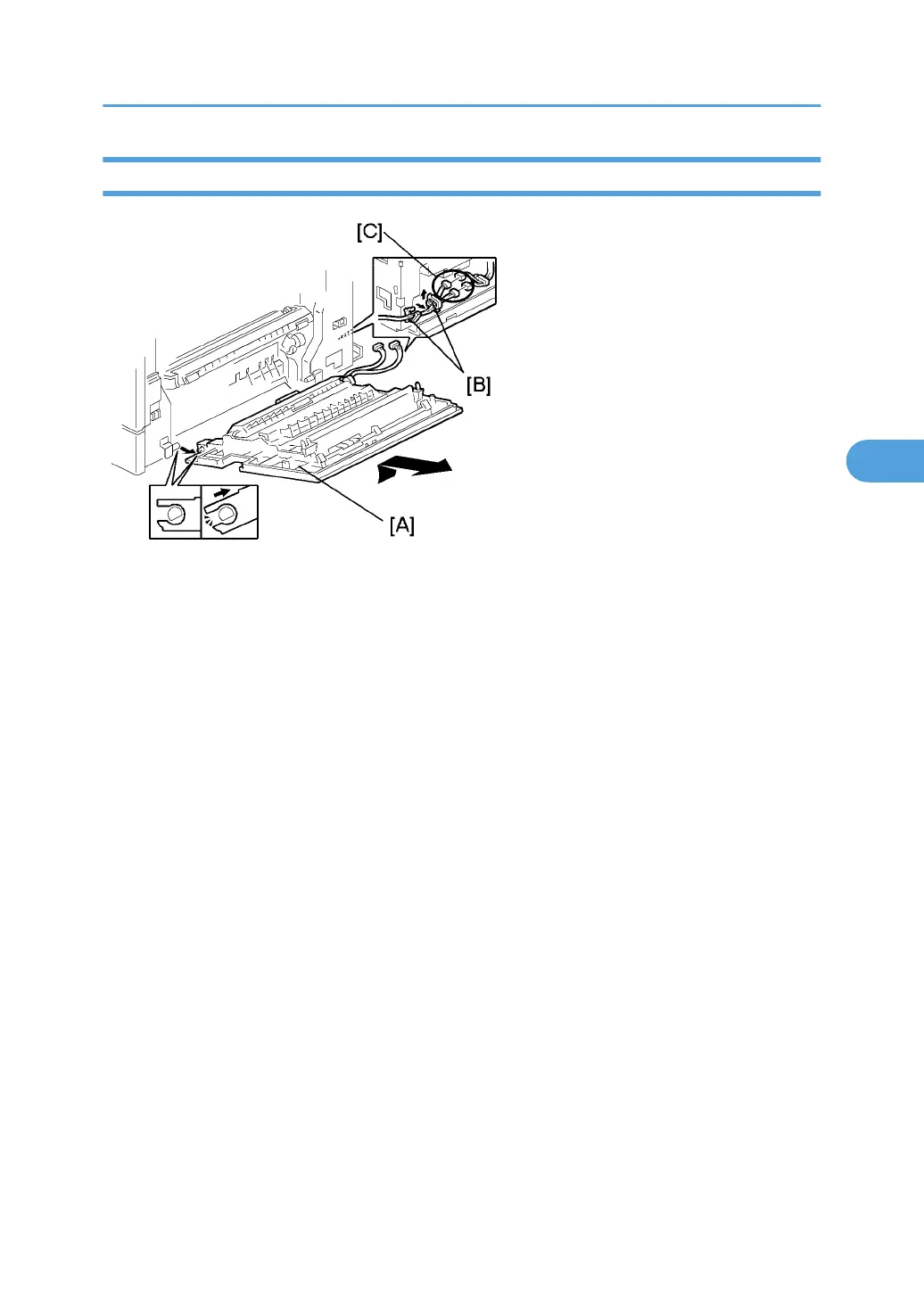

Right Door (Duplex Unit (B244/B269/B277))
1. Right rear cover (see above)
2. Open the right door [A].
3. Open the clamps [B] and disconnect the two connectors [C] or three connectors (B244/B269/
B277).
4.
Right door
Exterior Covers & Operation Panel
81
4
