4.Replacement and Adjustment
88
Duplex

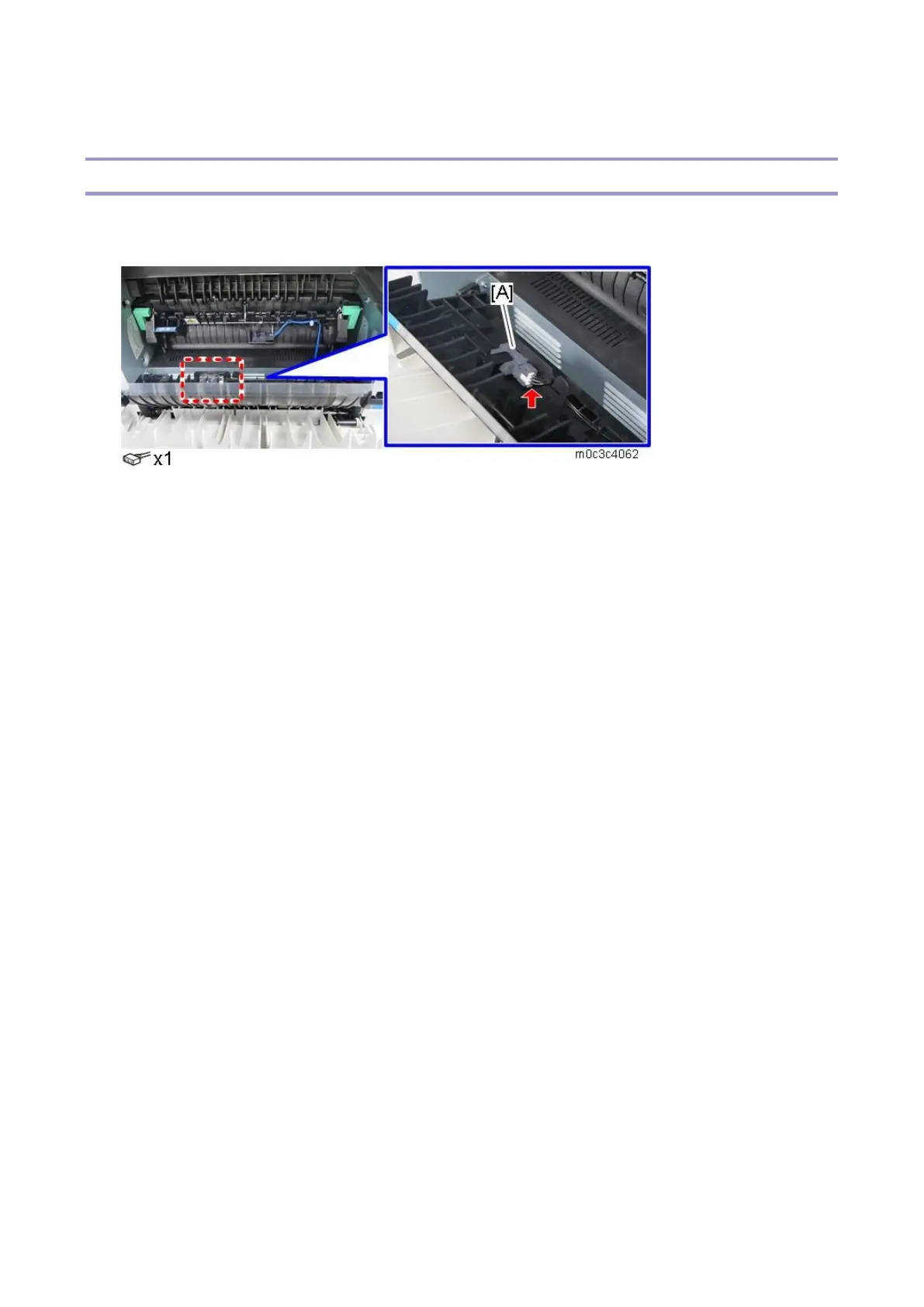

Duplex Sensor
1. Open the rear cover.
2. Remove the duplex sensor [A].
