Ricoh FAX1120L Field Service Manual

6.Troubleshooting
190
Jam Detection
Paper Jam

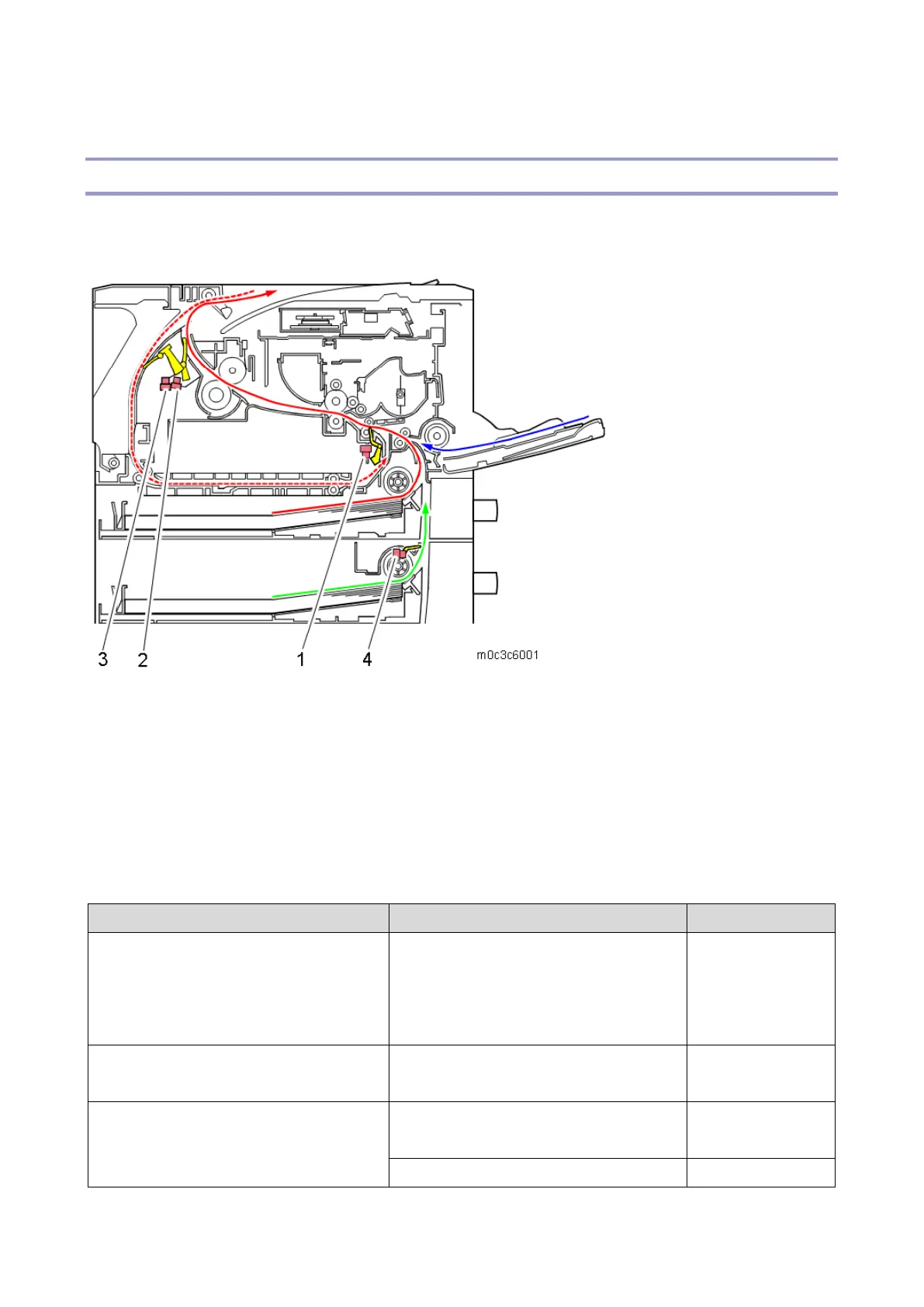

Jam Sensor Layout
The sensors used for jam detection are shown below.
1. Registration sensor
2. Paper exit sensor
3. Duplex sensor
4. Paper feed sensor (optional tray)
Jam Message List
Here is a list of common jam messages, and descriptions of the causes.
See the drawings shown above to check the sensor locations.
Jam message
Cause
Sensor
Misfeed: Paper Tray (Touch panel
models)
Misfeed: BypassTray (Four-line LCD
models)
Paper does not reach the registration
sensor (bypass tray)
Registration
sensor [1]
Misfeed: Tray 1
Paper does not reach the registration
sensor (tray 1)
Registration
sensor [1]
Misfeed: Tray 2
Paper does not reach the registration
sensor (tray 2)
Registration
sensor [1]
Paper does not reach the paper feed
Paper feed
