4.Replacement and Adjustment
32

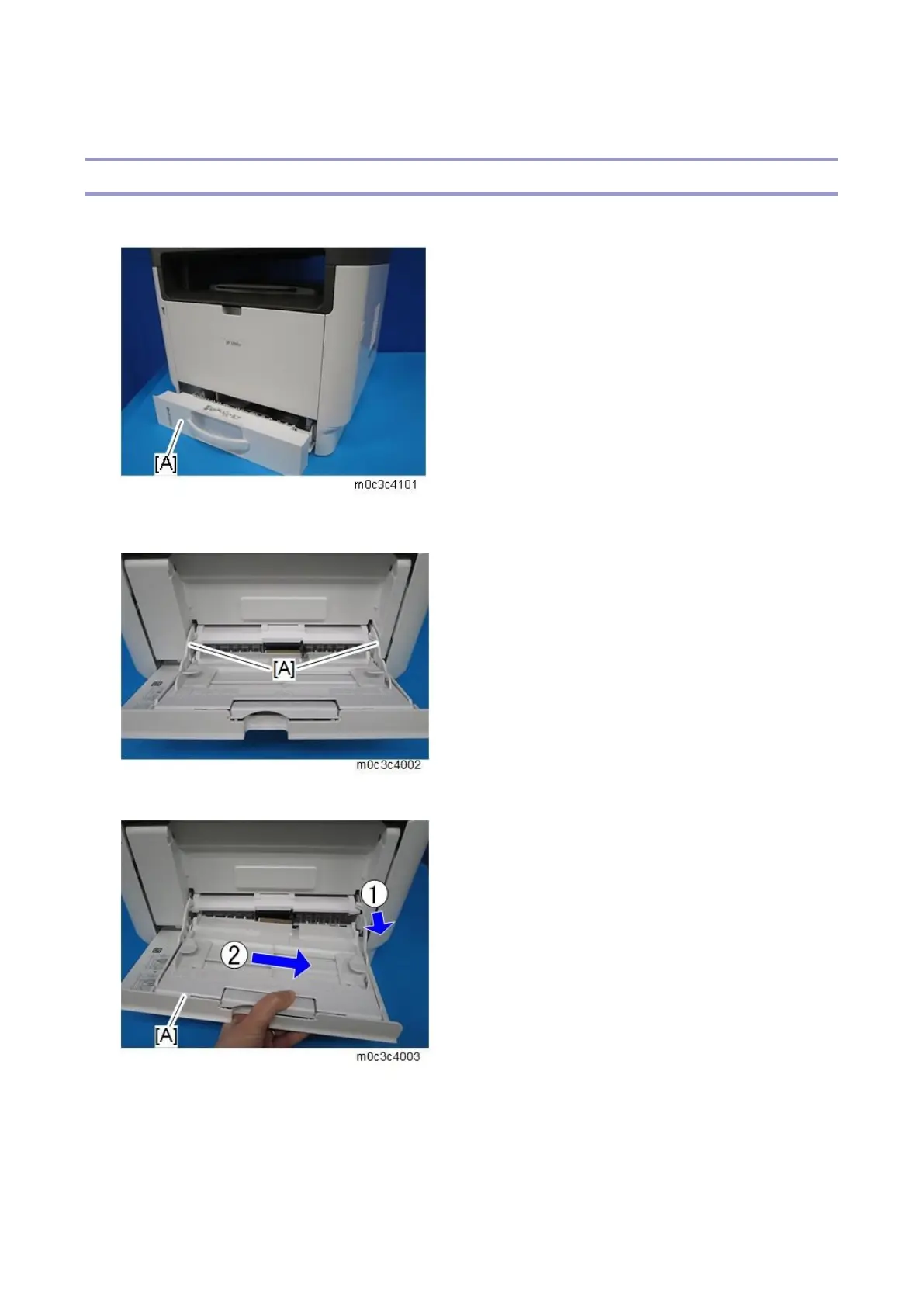

Exterior Covers (MF Models)
Front Cover
1. Pull out the standard paper tray [A].
2. Open the bypass tray and push in the two tabs [A].
3. Pull out the bypass tray [A].
