4.Replacement and Adjustment
87

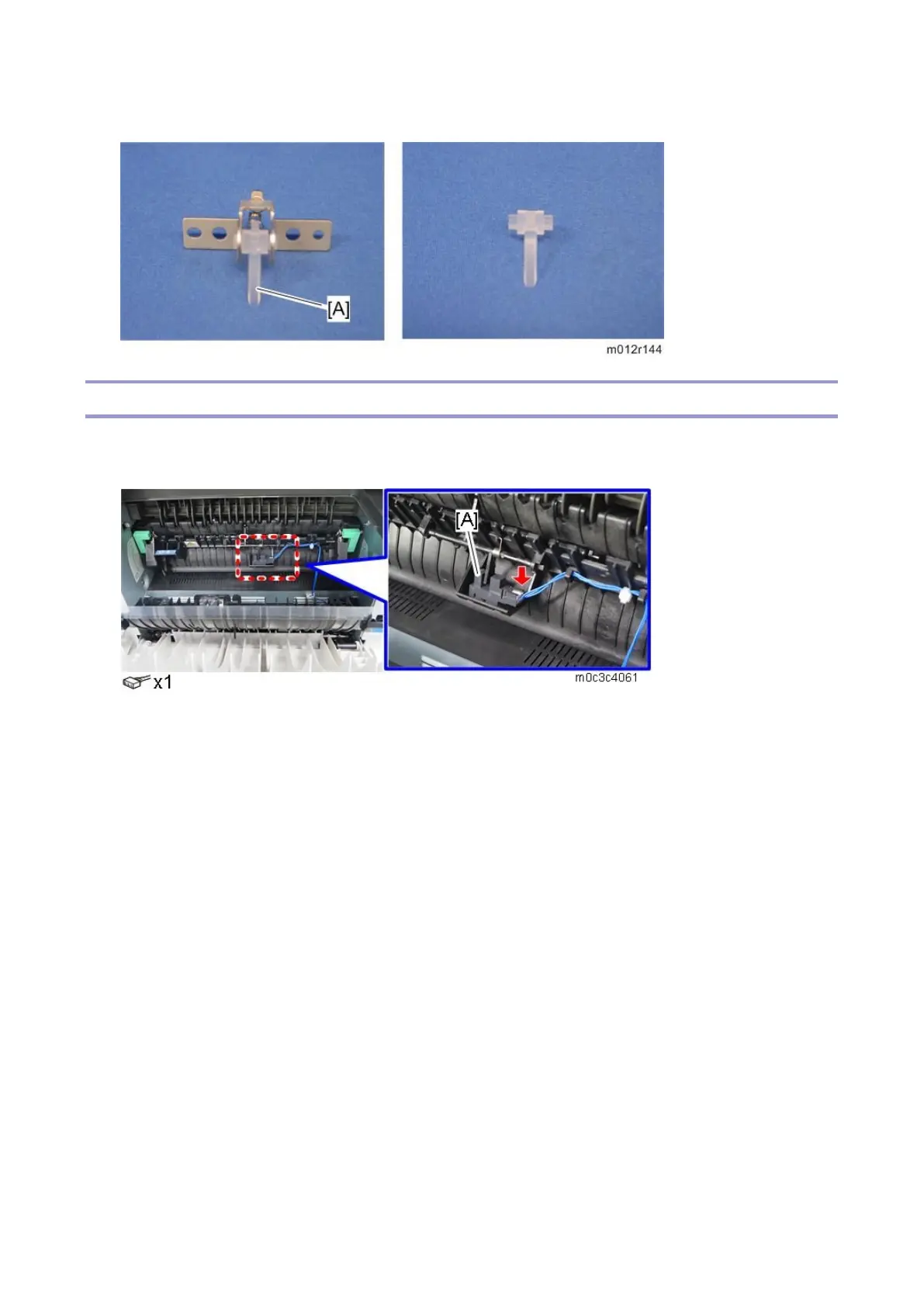

4. Remove the hot roller stripper pawls [A] (1 spring for each pawl).
Paper Exit Sensor
1. Open the rear cover.
2. Remove the paper exit sensor [A].
