7.Detailed Descriptions
230

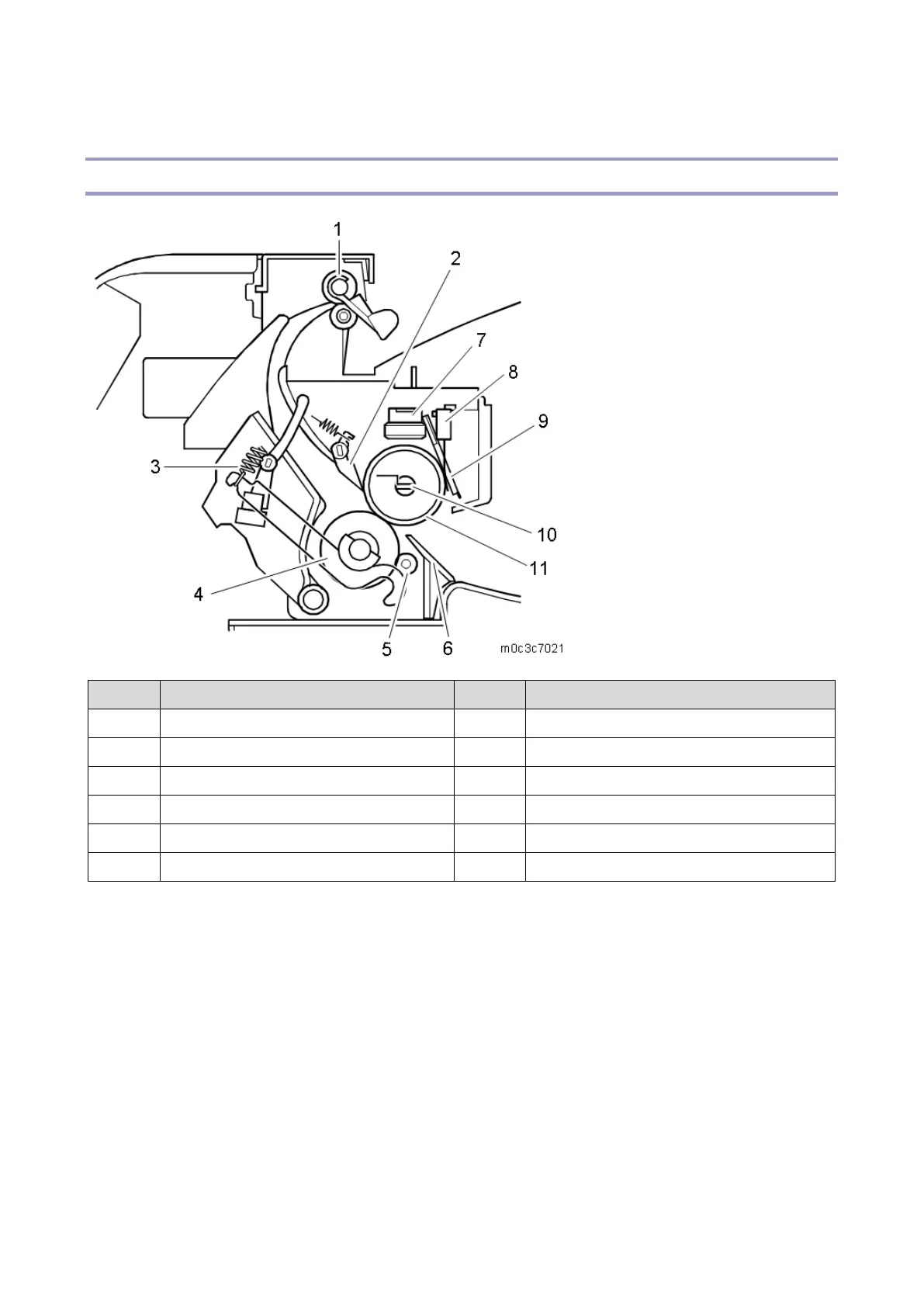

Fusing and Exit
Overview
No.
Item
No.
Item
1.
Paper exit roller
7.
Thermostat
2.
Stripper pawls
8.
Fusing thermistor
3.
Pressure spring
9.
Non-contact thermistor
4.
Pressure roller
10.
Fusing lamp
5.
Cleaning roller
11.
Hot roller
6.
Paper entrance guide
