Ricoh FAX1120L Field Service Manual

4.Replacement and Adjustment
29

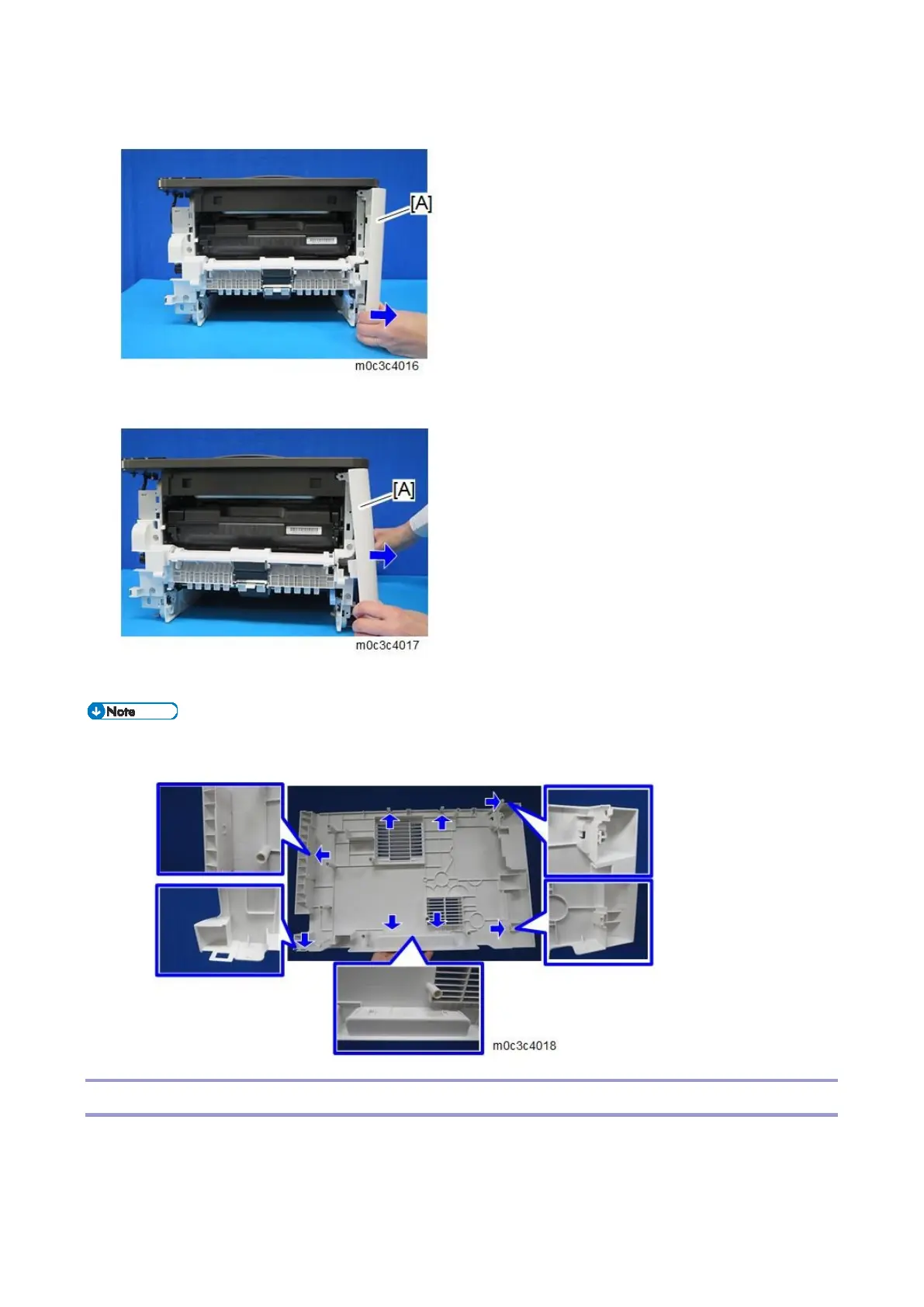

6. Pull the front bottom part of the right cover [A] to release the hook.
7. Remove the right cover [A].
 There are many hooks and tabs inside the right cover. Before removing the right cover, see the
photos below.
Top Cover
1. Remove the front cover (Front Cover).
2. Remove the left cover (Left Cover).
3. Remove the rear cover (Rear Cover).
