Ricoh FAX1120L Field Service Manual

4.Replacement and Adjustment
33

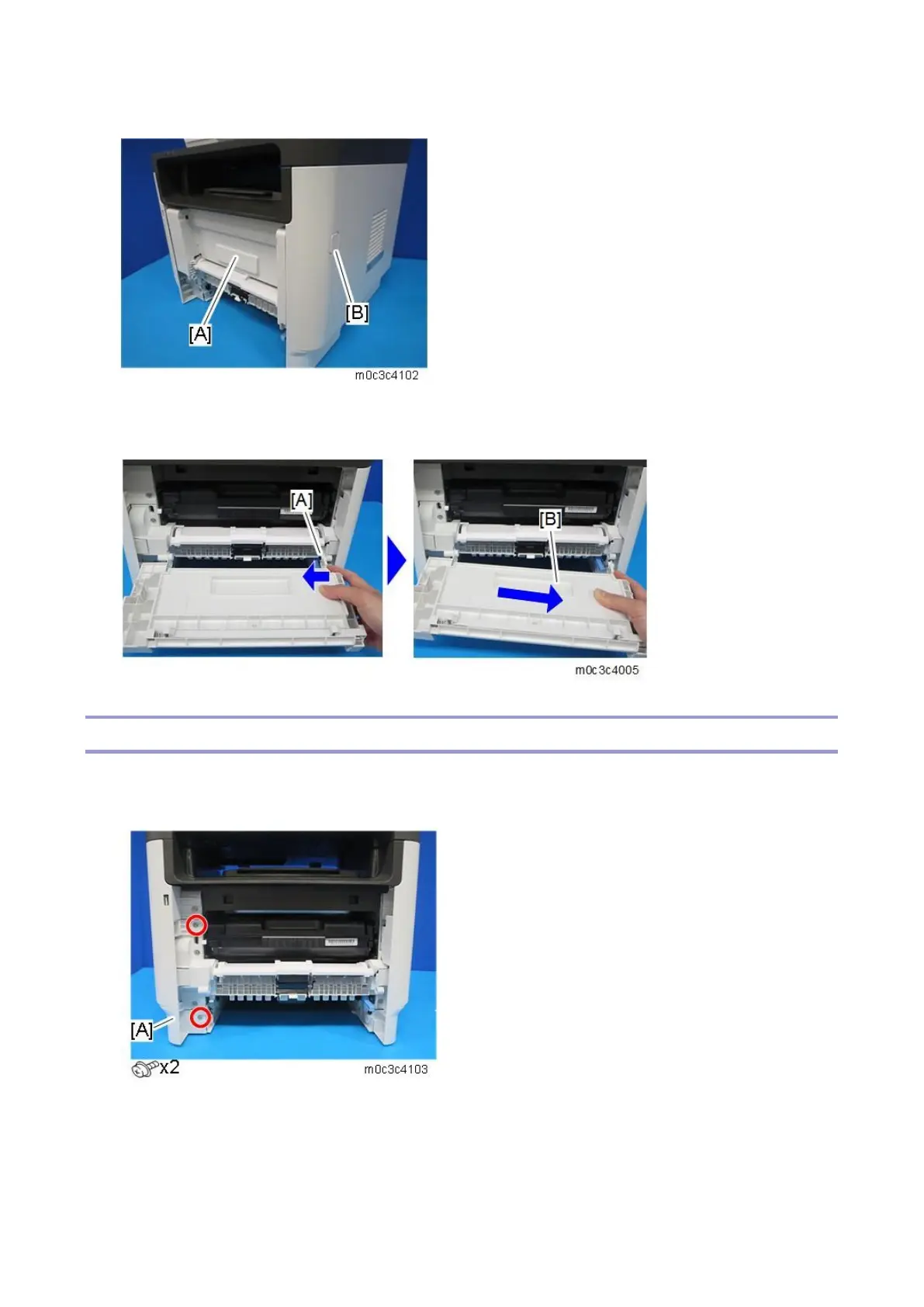

4. Push the cover release button [B], and open the front cover [A].
5. Push the right hinge [A] to release it, and then remove the front cover [B].
Left Cover
1. Remove the front cover (Front Cover).
2. Remove the two screws on the front side of the left cover [A].

Ricoh FAX1120L Specifications

General

Brand	Ricoh
Model	FAX1120L
Category	Printer
Language	English
