Ricoh FAX1120L Field Service Manual

4.Replacement and Adjustment
43
state.

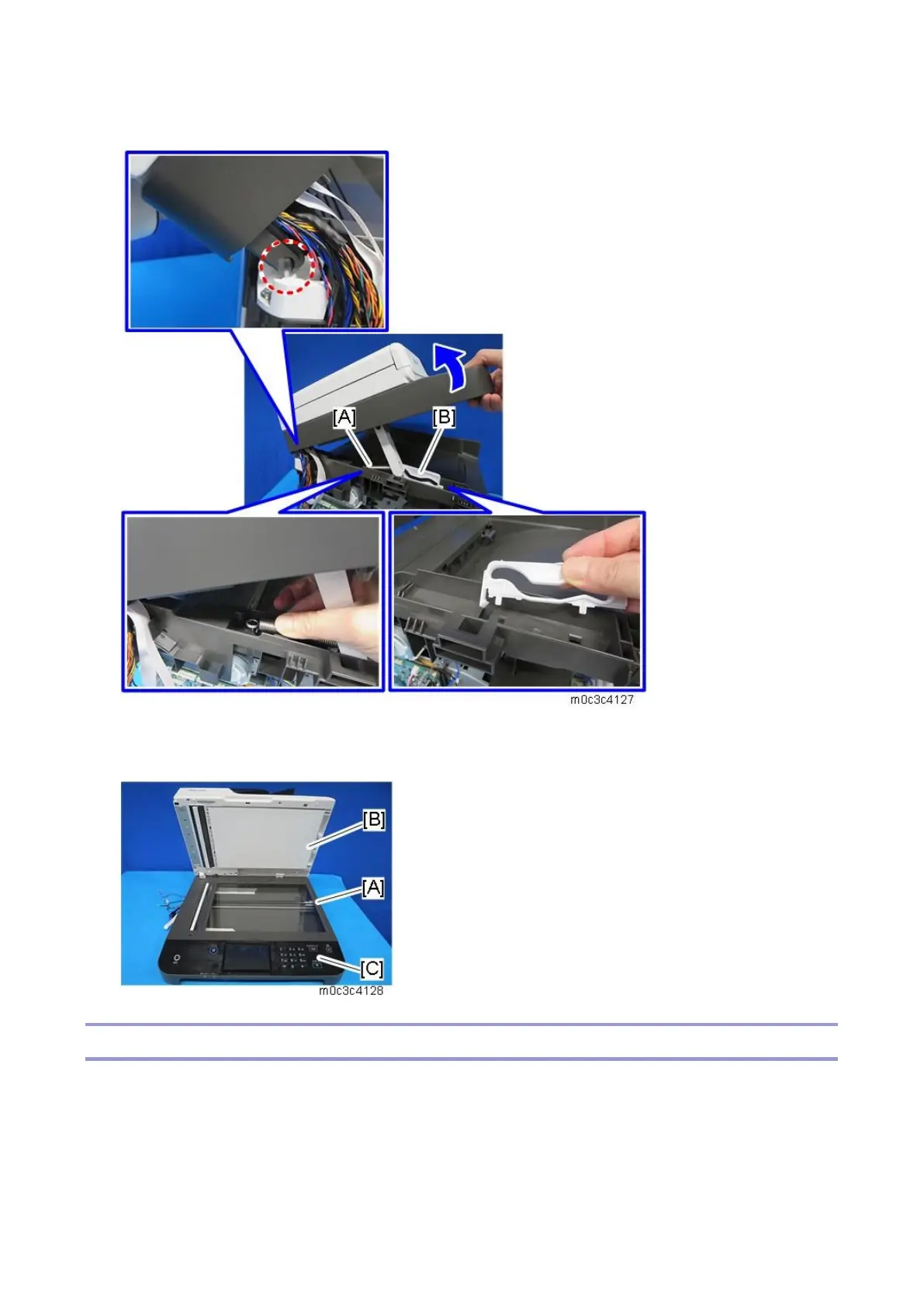

6. Remove the ADF unit [B] (ADF/ARDF Unit (Only MF Models)) and the operation panel unit [C]
(Operation Panel Unit) from the scanner unit [A].
Operation Panel Unit
1. Remove the scanner unit (Scanner Unit).
