Ricoh FAX1120L Field Service Manual

4.Replacement and Adjustment
100

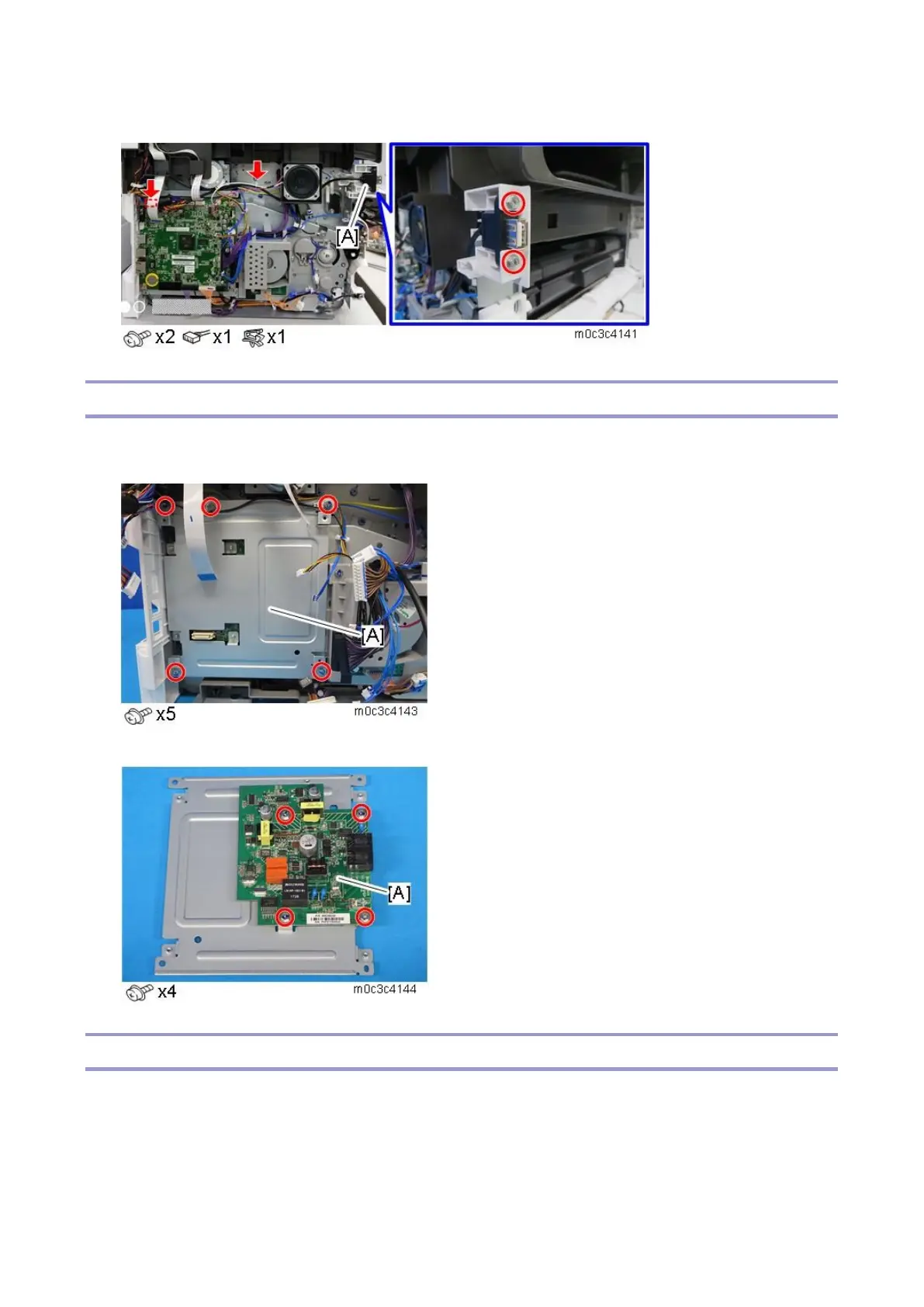

2. Remove the USB port [A].
FCU (Only for Fax Models)
1. Remove the main board (Main Board (MF Touch Panel Models)).
2. Remove the main board bracket [A].
3. Remove the FCU [A].
Speaker (Only for Fax Models)
1. Remove the left cover (Left Cover).
