Ricoh GR-C1 User Manual

Key Counter Bracket Type H (A674)
D117/D118 2-60 SM

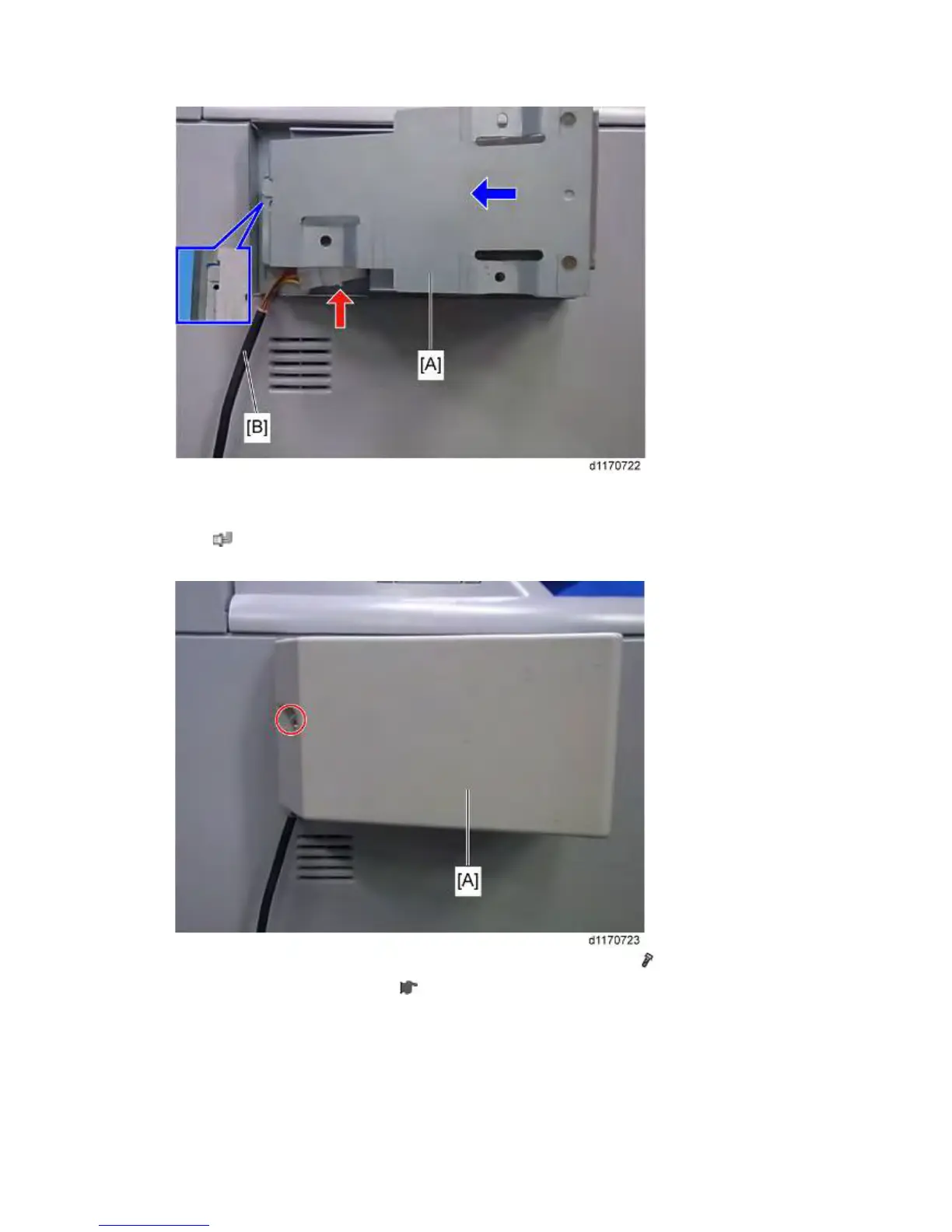

6. Connect the connector of the harness [B] to the connector from the key counter bracket, and
then insert the key counter bracket [A] into the attaching bracket obliquely from the upper right
side (
x 1).
7. Pull out the harness [B] from below as shown above.
8. Attach the key counter bracket cover [A] to the key counter bracket (
(large) x 1).
9. Remove the scanner rear cover (
p.4-30)

Ricoh GR-C1 Specifications

General

Brand	Ricoh
Model	GR-C1
Category	All in One Printer
Language	English
