Electrical Components
SM 4-129 D117/D118
Replacement
and
Adjustment
4.15.3 CONTROLLER BOARD DIMM
1. Rear cover ( p.4-22)

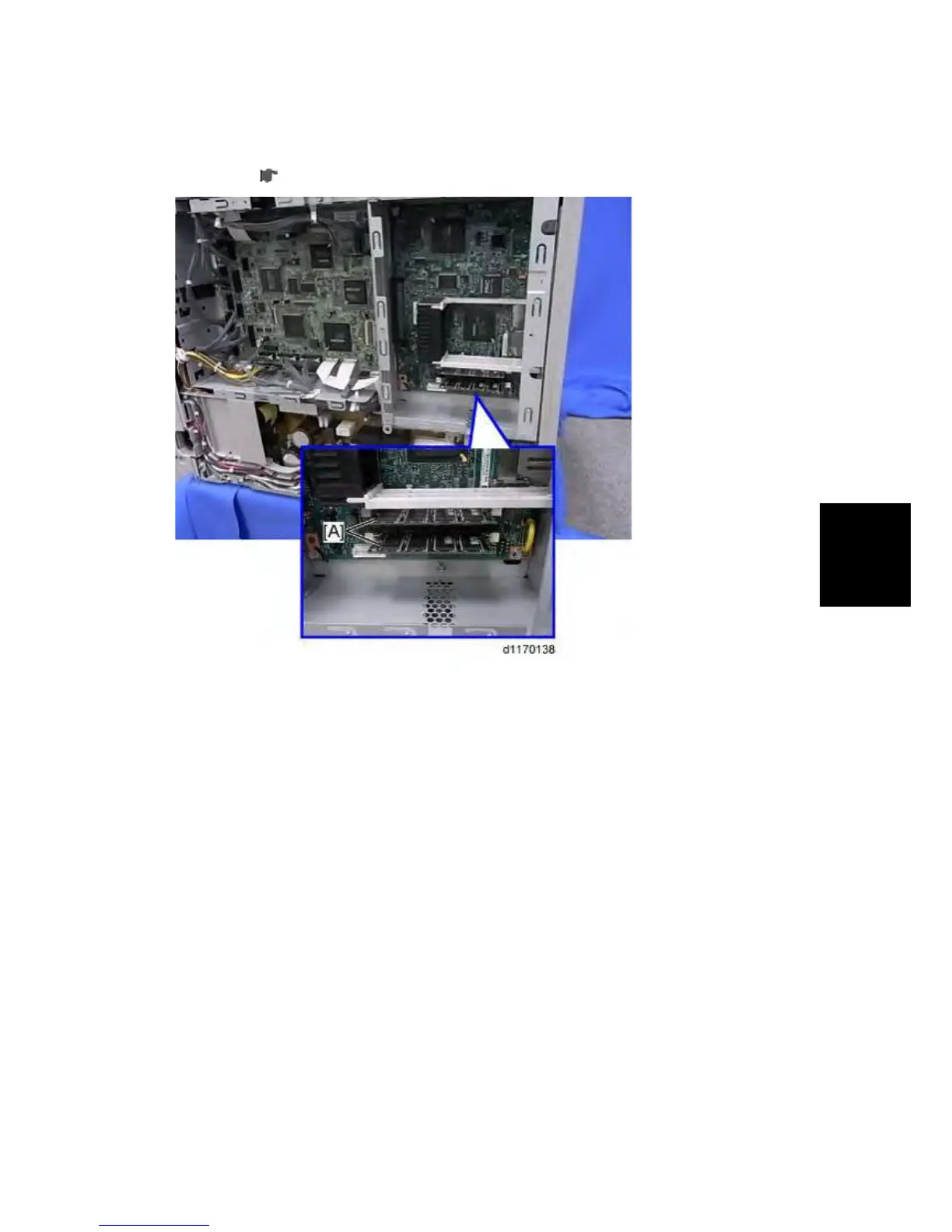

2. Release the lock levers of the DIMM socket at both ends, then remove the DIMM [A].
