4. Route the USB cable [A] from the IC card reader as shown above ( x 5).
5. Pull out the USB cable from the rear of the machine.

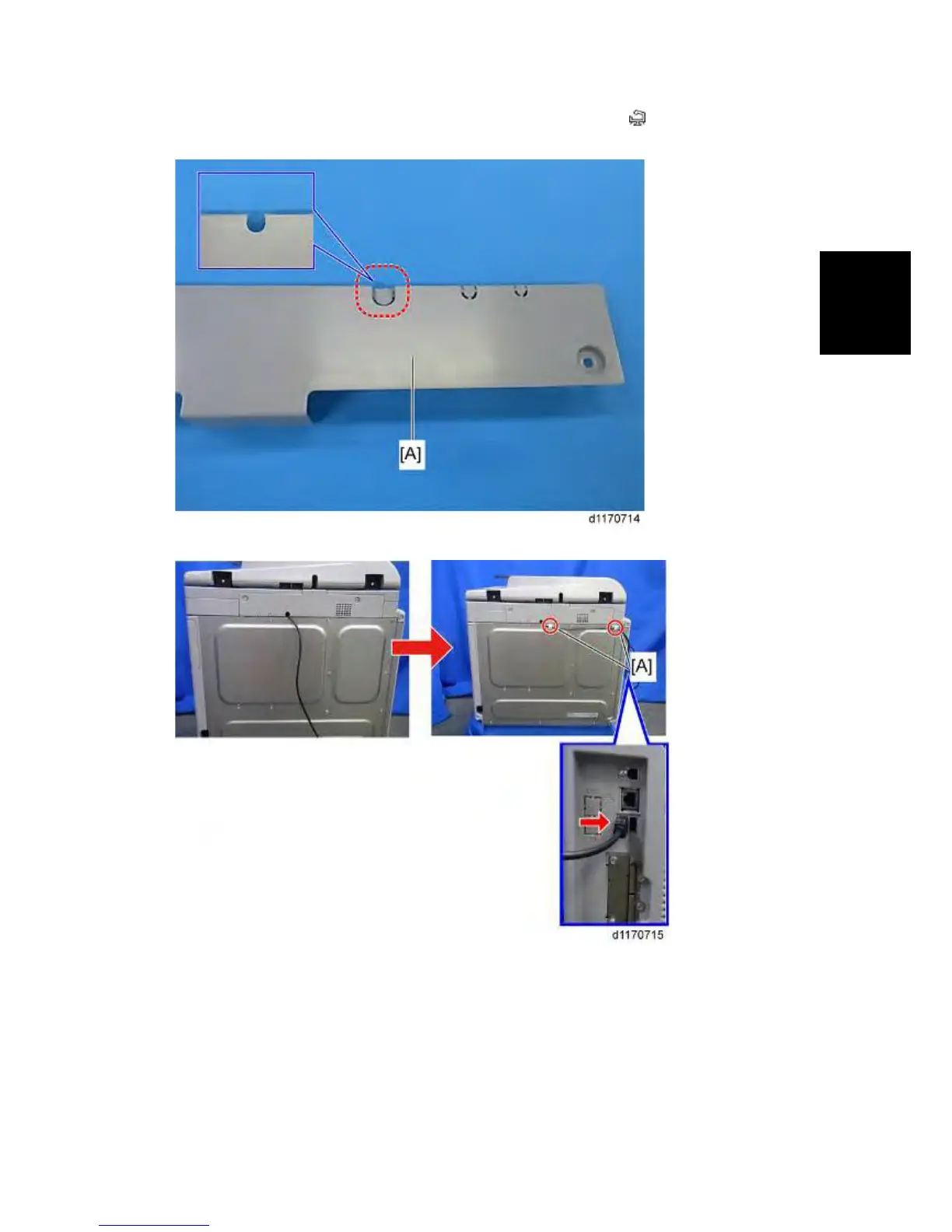

6. Cut out the hole for the USB cable to pass through the rear upper cover [A].
7. Pass the USB cable from the IC card reader through the hole in the upper rear cover, and
then reassemble the machine.
8. Attach the clamps [A] to prevent the cable from sagging.
9. Connect the USB cable to the USB receptor at the left of the mainframe as shown above.
Either receptor can be used.
