Scanner
SM 4-37 D117/D118
Replacement
and
Adjustment

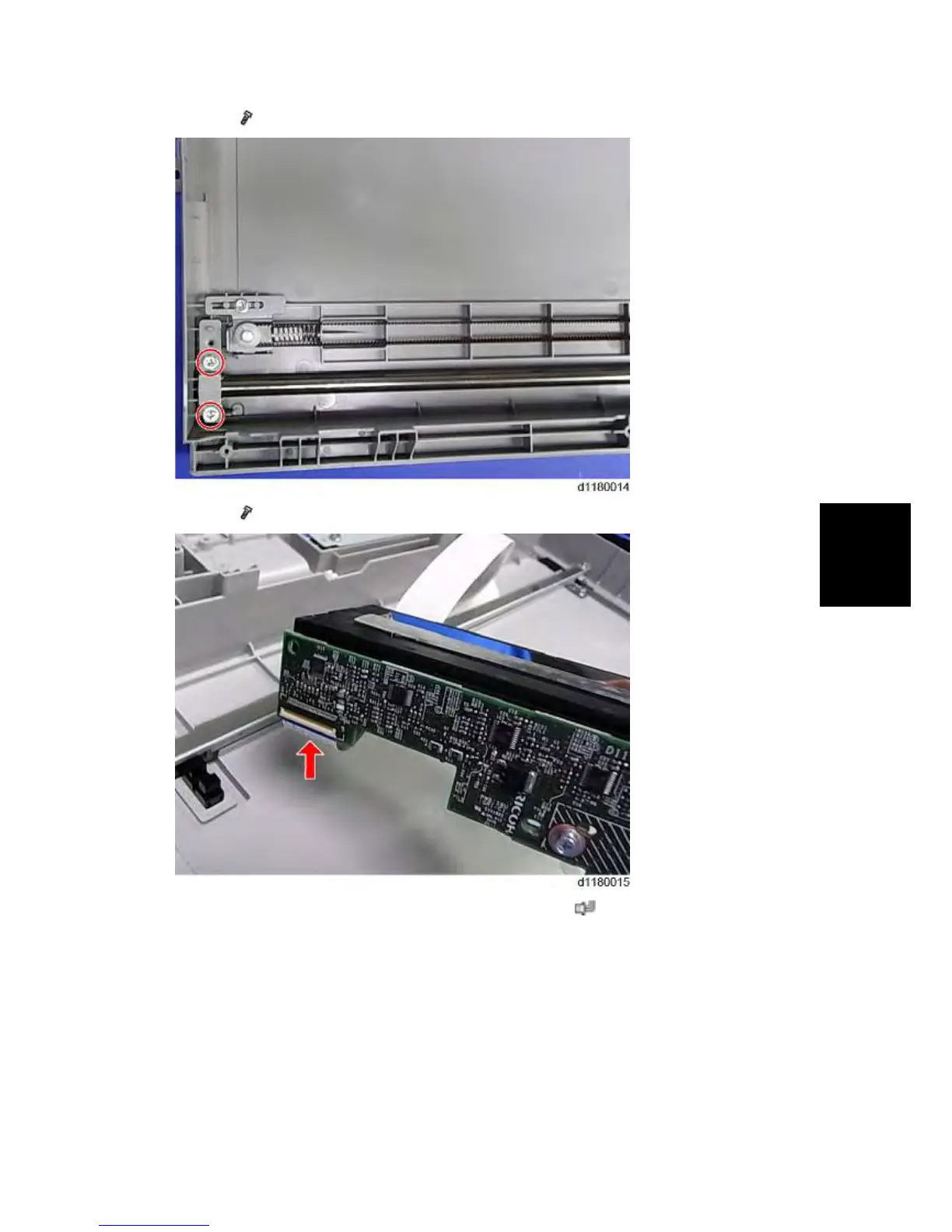

5. Bracket ( x 2)
6. Bracket (
x 2)
7. Disconnect the flat cable while lifting up the carriage shaft (
x 1).
