Optional Counter Interface Unit Type A (B870)
SM 2-49 D117/D118
Installation

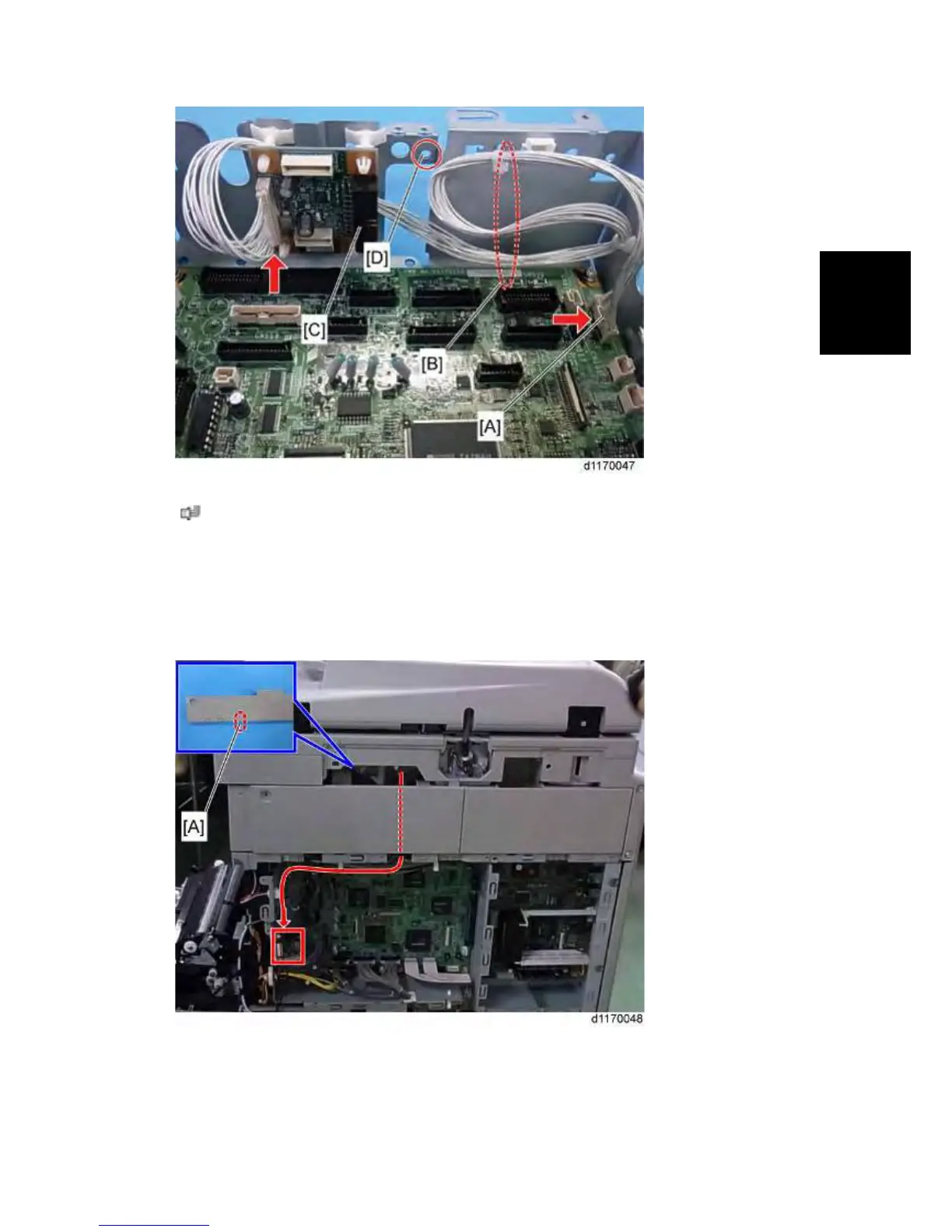

6. Route the harness through the rear of the interface board, and then connect it to CN570 [A]
(
x 2).
7. Band the harness at the point [B] with the harness band included in this kit to prevent
interference with other harnesses.
8. Insert the clamp included in this kit at [D], and clamp the harness with the clamp to prevent
interference with other harnesses.
9. Connect the harness from the counter device to CN4 [C] on the key counter interface board.
10. Route the harness.
