• The [UNDO] button cannot be used in macro operation
mode. Also, the [DEL] button cannot be used in edit
mode.
Bank selection buttons
b Memory recall section (memory recall buttons)
This section displays the functions assigned to the buttons
for t
he selected operation mode.
The top right button is used to display the selected pattern
numbe
r, register number, macro event number, transition
rate input value, and other status display (excluding in
key operation mode).
When a macro is recalled in macro operation mode, the
bot
tom center button displays the executed event number
and the total number of events.
Numeric keypad mode
Pressing the [BANK SEL] button, [PTN NO.] button, or
[PAUSE
] button switches the memory recall section to
numeric keypad mode, where you can enter bank
numbers, wipe pattern numbers, and pause event times.
The currently set numeric value or the value entered in
numer
ic keypad mode is displayed on the top right button.

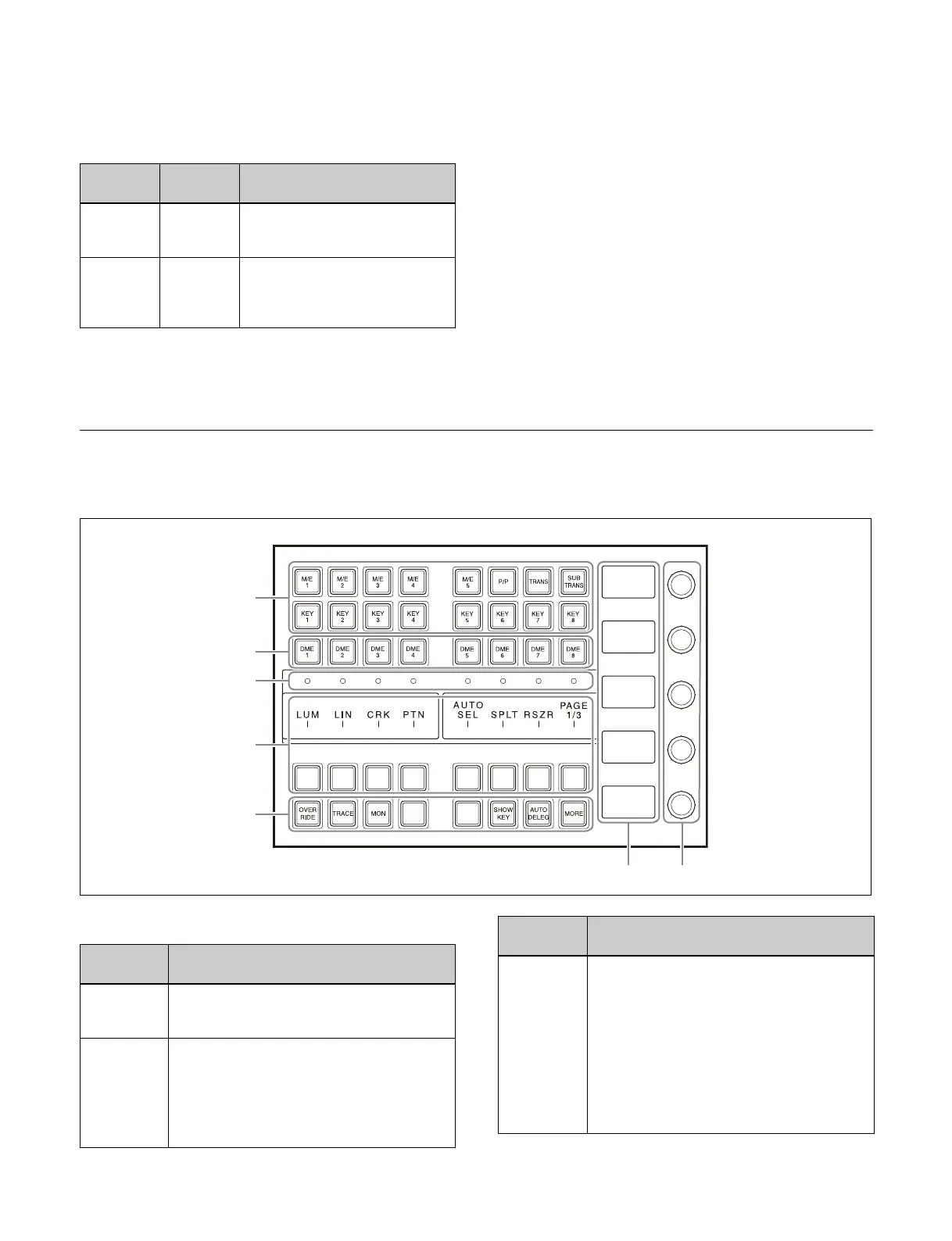

Key Control Block
The key control block is used to adjust and modify keys. For details, see “Chapter 6 Keys” (page 116).
a Del
egation buttons
Function
name
Button
name
Description
Bank 0 to
Ban
k 99
BANK0 to
BANK99
The memory recall section
switches to the register display
for the selected bank.
Bank
Sel
ect
BANK SEL Enter a bank number to switch
the memory recall section to the
register display for the selected
bank.
a
b
c
d
e
fg
Button
name
Description
M/E1 to
M/E5
P/P
Assigns a switcher bank (M/E-1 to M/E-5,
P/P) to the key control block.
KEY1 to
KEY8
• Assigns a key (key 1 to key 8) to the key
co
ntrol block.
• You can press and hold an [M/E1] to
[M/E5] button or [P/P] button and then
pres
s a [KEY1] to [KEY8] button to return
the key settings to the initial settings.
TRANS • Used to check the DME channel used in a
transition.
• You can press and hold a [KEY1] to
[KEY8] button and press the [TRANS]
button to check the DME channel used in
an independent key transition.
• While the [TRANS] button is selected, you
can press a [DME1] to [DME4] button to
assign a DME channel to use in a DME
wipe.
Button
name
Description
