8. V-Belt Drive System / Kick Starter
8-5

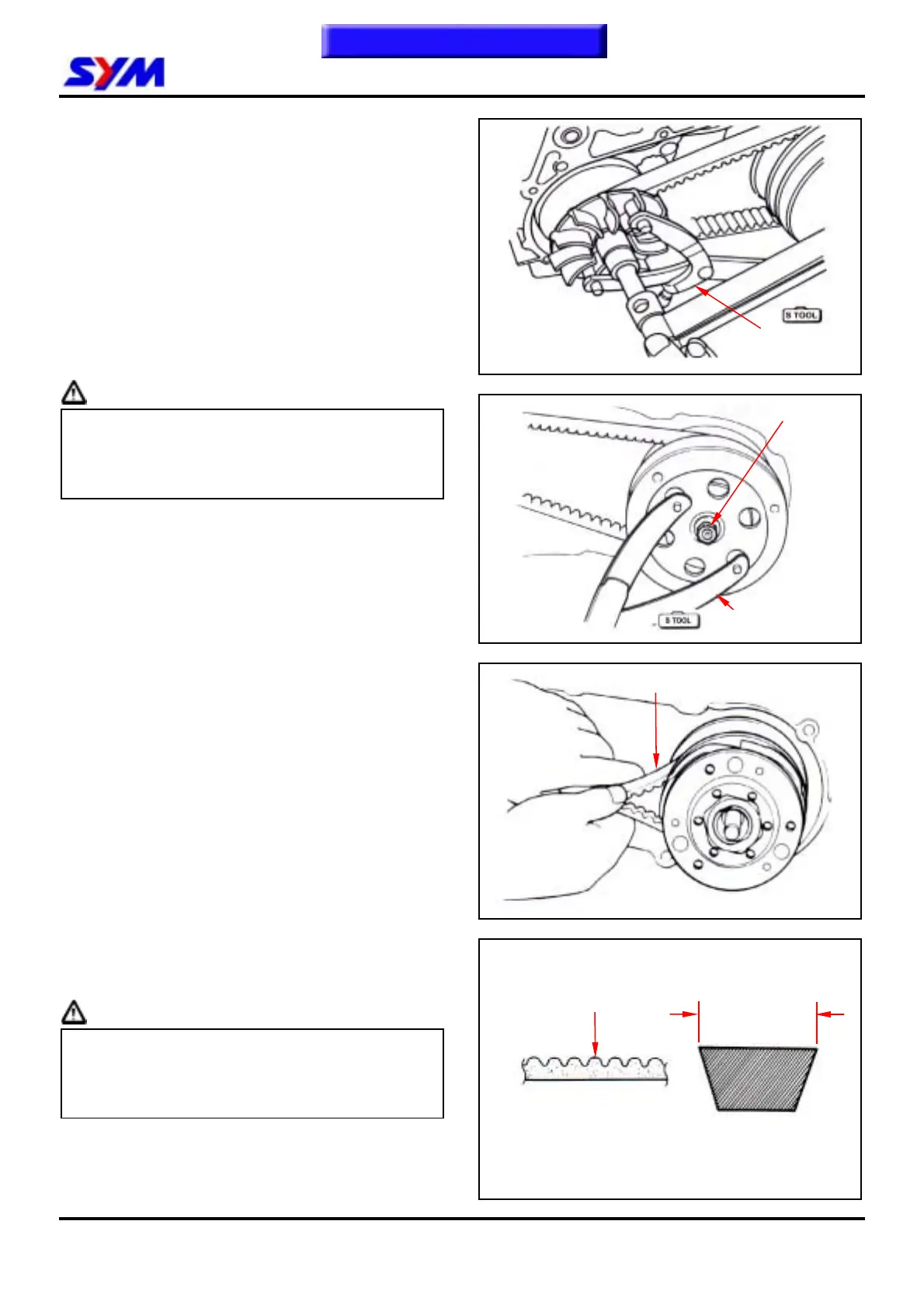

Drive Belt
Removal
Remove left crankcase cover
Hold drive face with universal fixture, and remove
nut and drive face.
Special Service Tool:
Universal fixture SYM-2210100
Hold the clutch outer with the universal fixture, and
the remove the nut and the clutch outer.
Caution
z Using special service tools for tightening or
loosening the nut. Fixed rear wheel or rear
brake only will damage reduction gear
system.
Special Service Tool:
Universal fixture SYM-2210100
Push the drive belt into belt groove as diagram
shown so that the belt can be loosened, and then
remove.
Drive belt and clutch at same time.
Inspection
Check the drive belt for crack or wear. Replace it
if necessary.
Measure the width of drive belt as diagram shown.
Replace the belt if exceeds the service limit.
Service Limit: 17.2mm
Caution
z Using the genuine parts for replacement.
z The surfaces of drive belt or pulley must be
free of grease.
z Clean up all grease or dirt before installation.
Universal fixture
Tooth
Width
Nut
Drive belt
Universal fixture
