4. Fuel System
4-1
Mechanism Illustration ......................4-1
Operational Precautions....................4-2
Trouble Diagnosis..............................4-3
Carburetor...........................................4-4
Idle Speed Adjustment ...................... 4-8
Fuel Tank ............................................ 4-9
Air Cleaner.......................................... 4-11

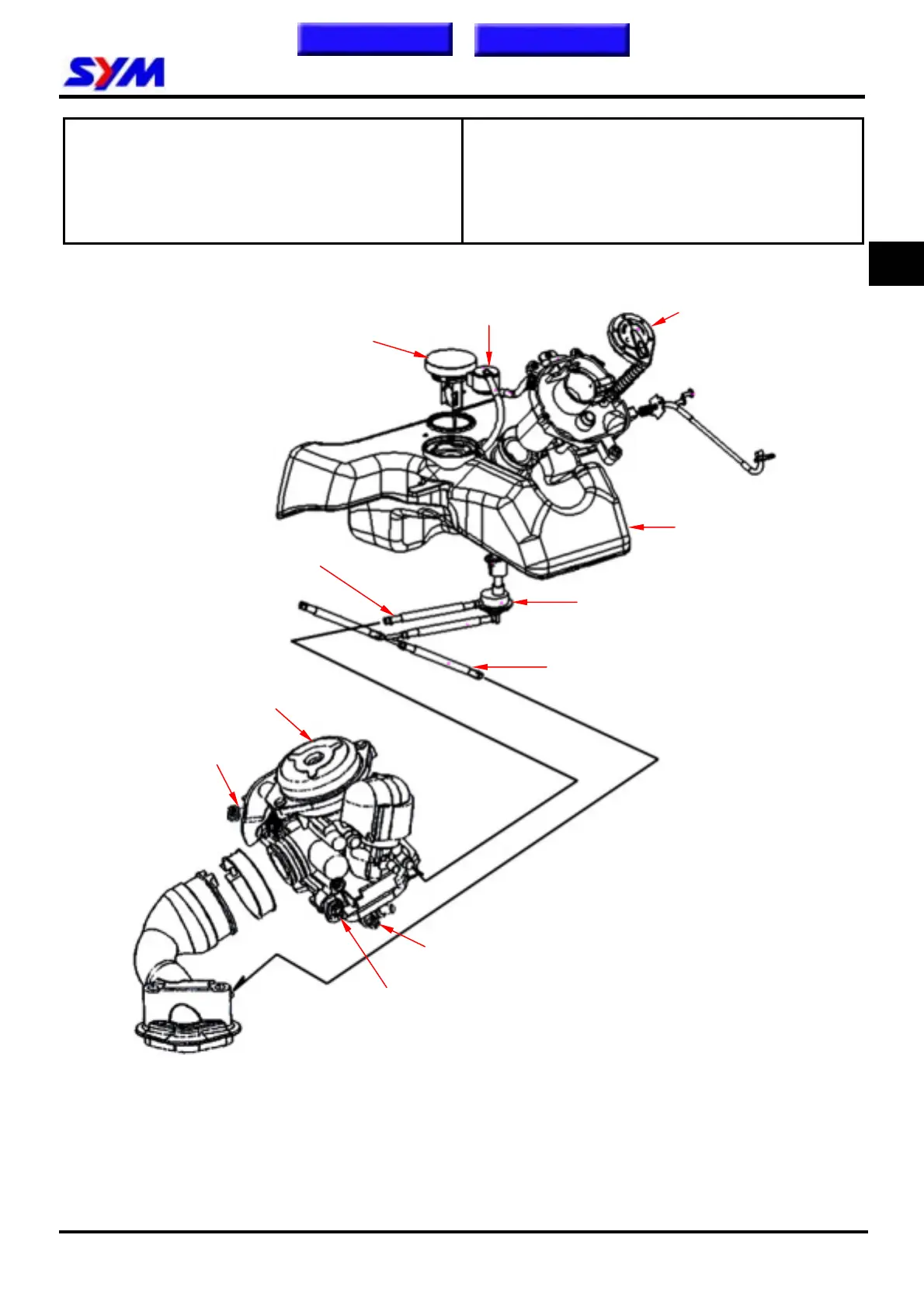

Mechanism Illustration
Fuel tank cap
Fuel vapor separator
Fuel unit
Fuel tank
Vacuum hose
Vacuum type fuel coke
Carburetor
Fuel hose
Fuel drain screw
Mixture adjustment screw
Throttle valve stopper screw
