Sym Mio 50 User Manual

6. Cylinder Head / Valve
6-6

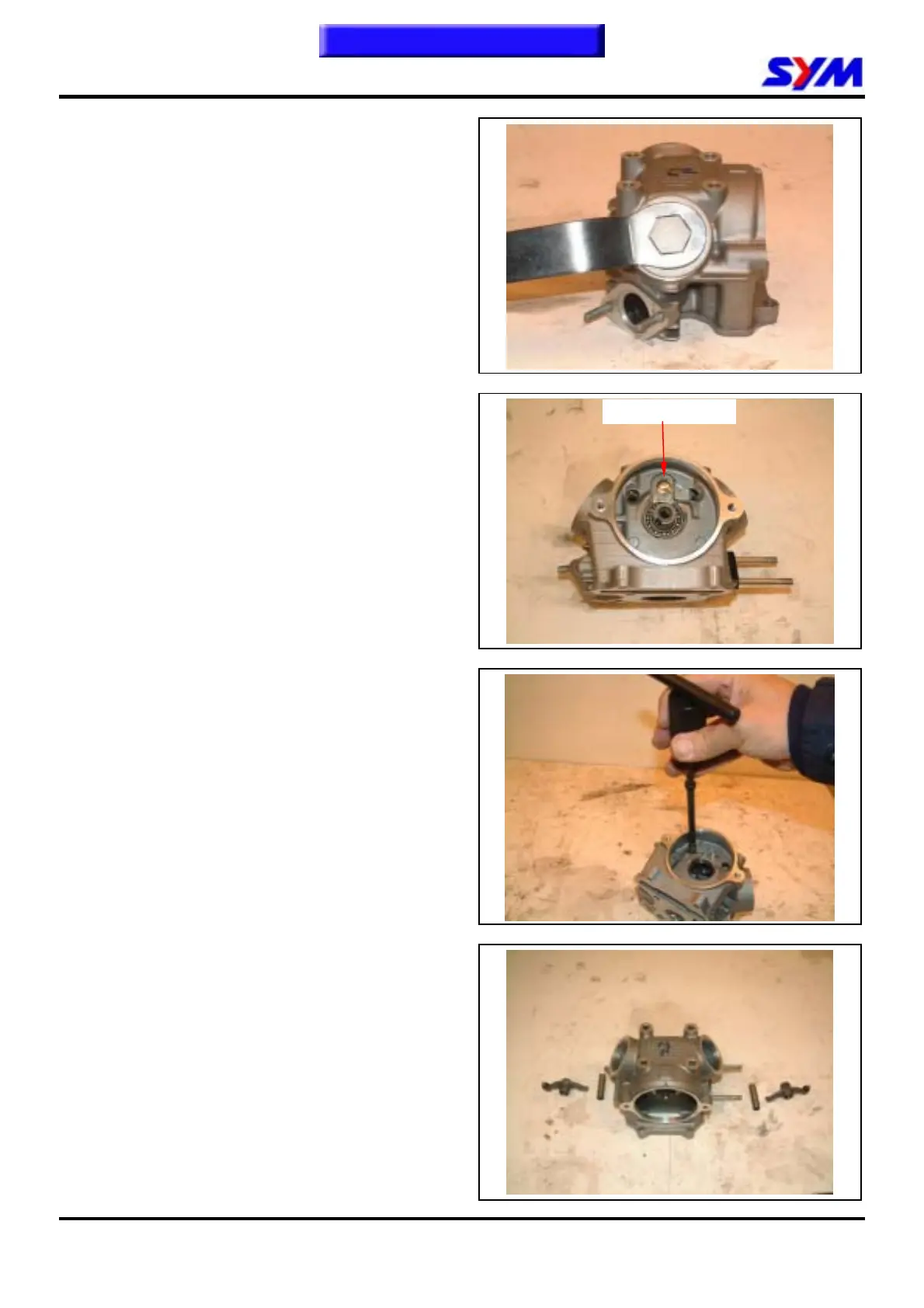

Cylinder Head Disassembly (HU05U)
Remove the valve cover from the cylinder head.
Special Service Tool:
Cylinder head wrench: SYM-ALL12361
Remove the camshaft stopper of the rocker arm
shaft (1 bolt).
With valve rocker arm puller to drive into the
rocker arm shaft, and then remove the rocker arm
shaft and the rocker arm.
Special Service Tool:
Valve rocker arm shaft puller:
SYM-1445100-A1A
Take out the rocker arm and shaft.
Camshaft stopper
