3. Lubrication System
3-4

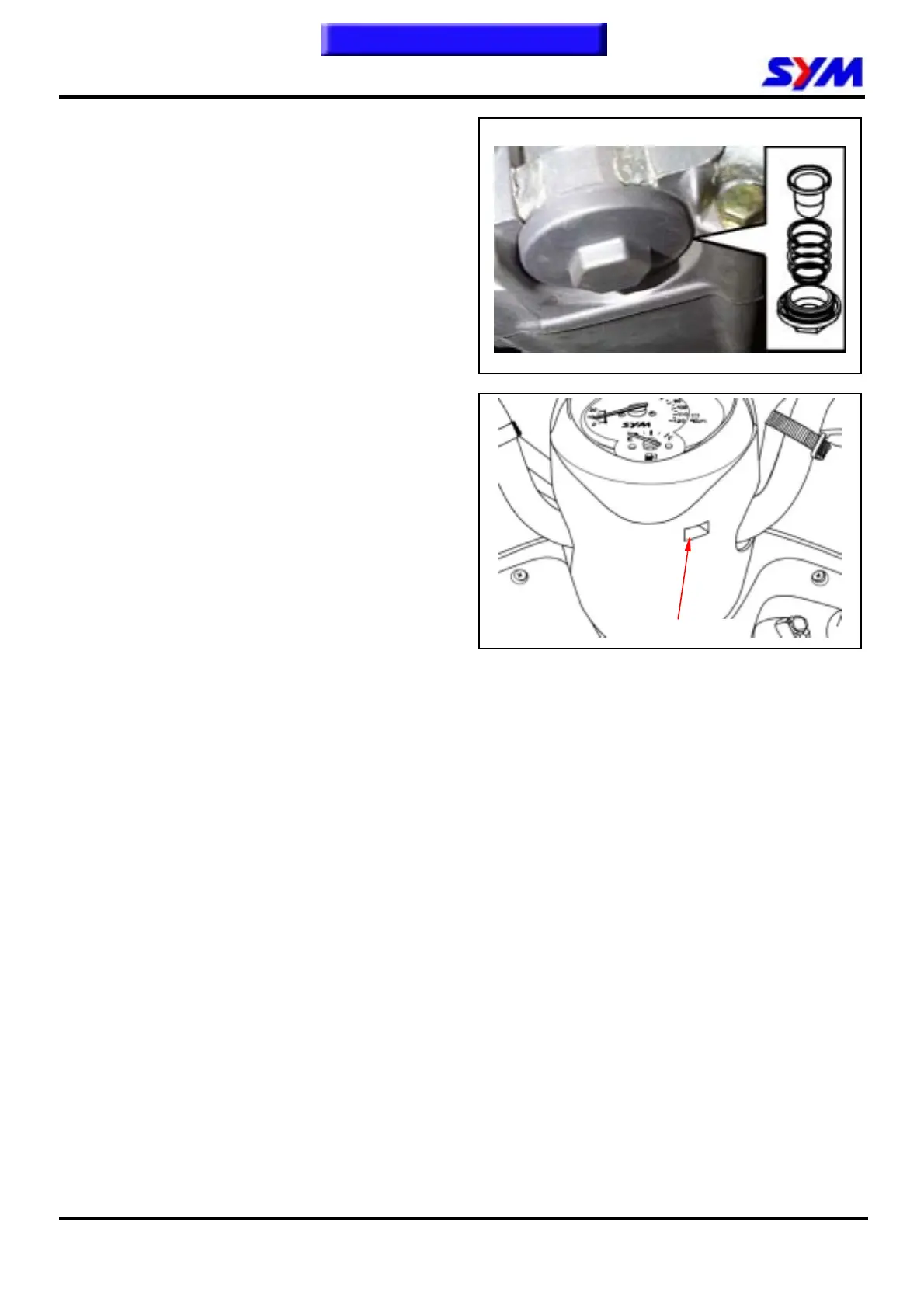

Cleaning Engine Oil Strainer
Remove the oil strainer cap.
Remove oil strainer and spring
Clean oil strainer (recommended using
compressed air to clean dirty foreign.)
Check if the strainer and O-ring of the oil strainer
are broken. Replace with new one if found.
Install the oil strainer and spring.
Install the oil strainer cap and tighten it.
Special Service Tools:
Strainer cap wrench SYM-ALL12361
Torque value：1.3~1.7kgf-m
Fill out oil to the oil filler (Oil viscosity SAE
10W-30)
(Recommended King-Mate serial oils)
After oil replaced, insert ignition key into the re-set
bottom under instrument panel so that the oil
indicator is changed from red to green and set oil
replacement mileage to zero.
Install dipstick, start the engine for running several
minutes.
Turn off engine, and check oil level again if within
standard level after 3-5 minutes.
Check if engine oil leaks.
Re-set bottom
