11. Crankcase / Crankshaft
11-6

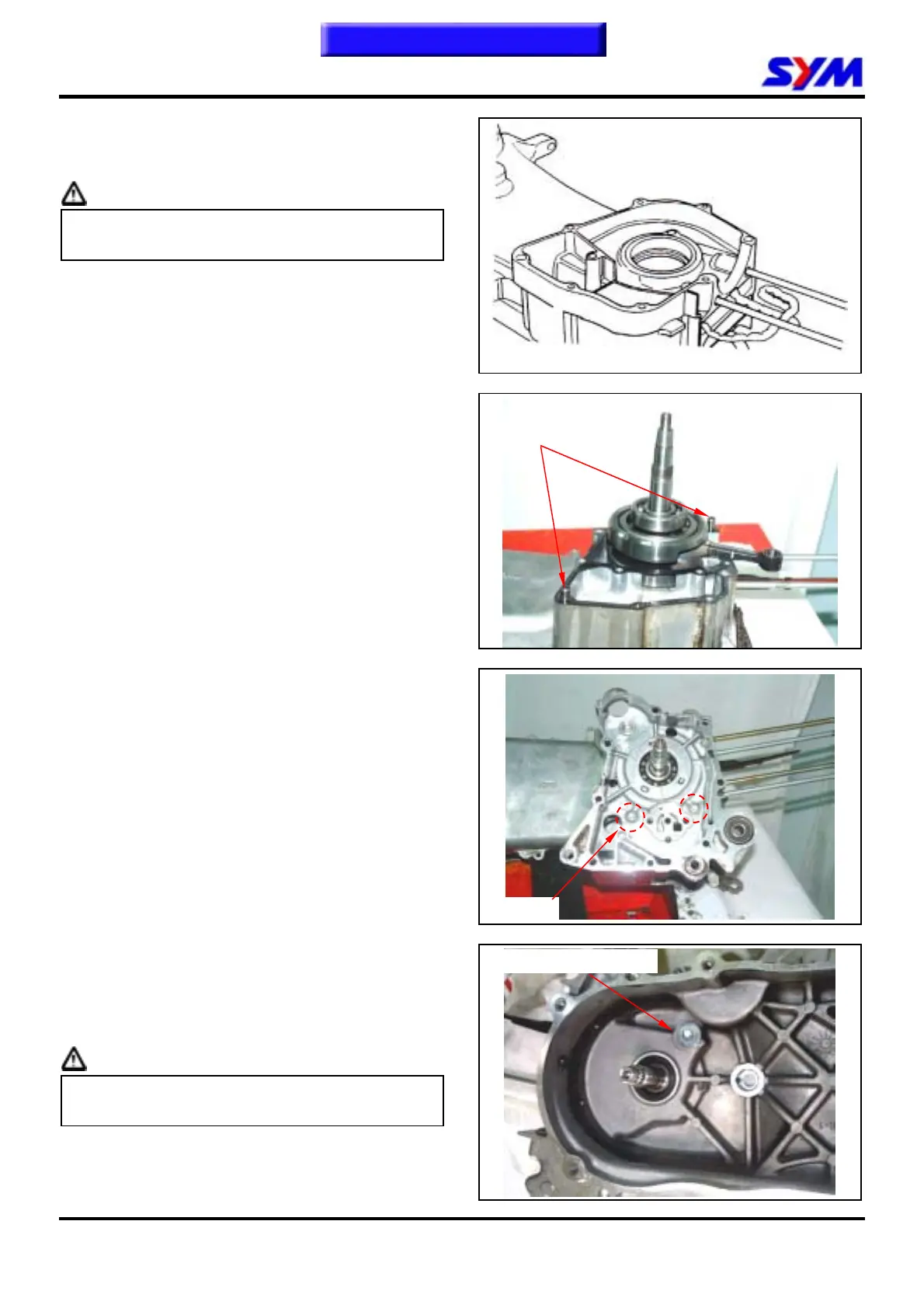

Assembly of Crankcase
Install cam chain into the chain hole of the left
crankcase, and then split out the cam chain.
Caution
z Do not damage the cam chain as installing
the crankshaft.
Install crankshaft into the left crankcase and then
install two and new crankcase gasket.
Install the right crankcase and tighten the
crankcase bolts (2 bolts).
Torque value: 1.5~2.0kgf-m
Install the cam chain tensioner.
Install a new O-ring onto the mounting bolt of the
chain tensioner.
Apply some oil on the O-ring and tighten the bolt.
Torque value: 0.8~1.2kgf-m
Caution
z The O-ring must be installed into the bolt’s
groove.
Socket-hex head bolt
Dowel pins
2 bolts
