10. Alternator / Starting Clutch
10-5

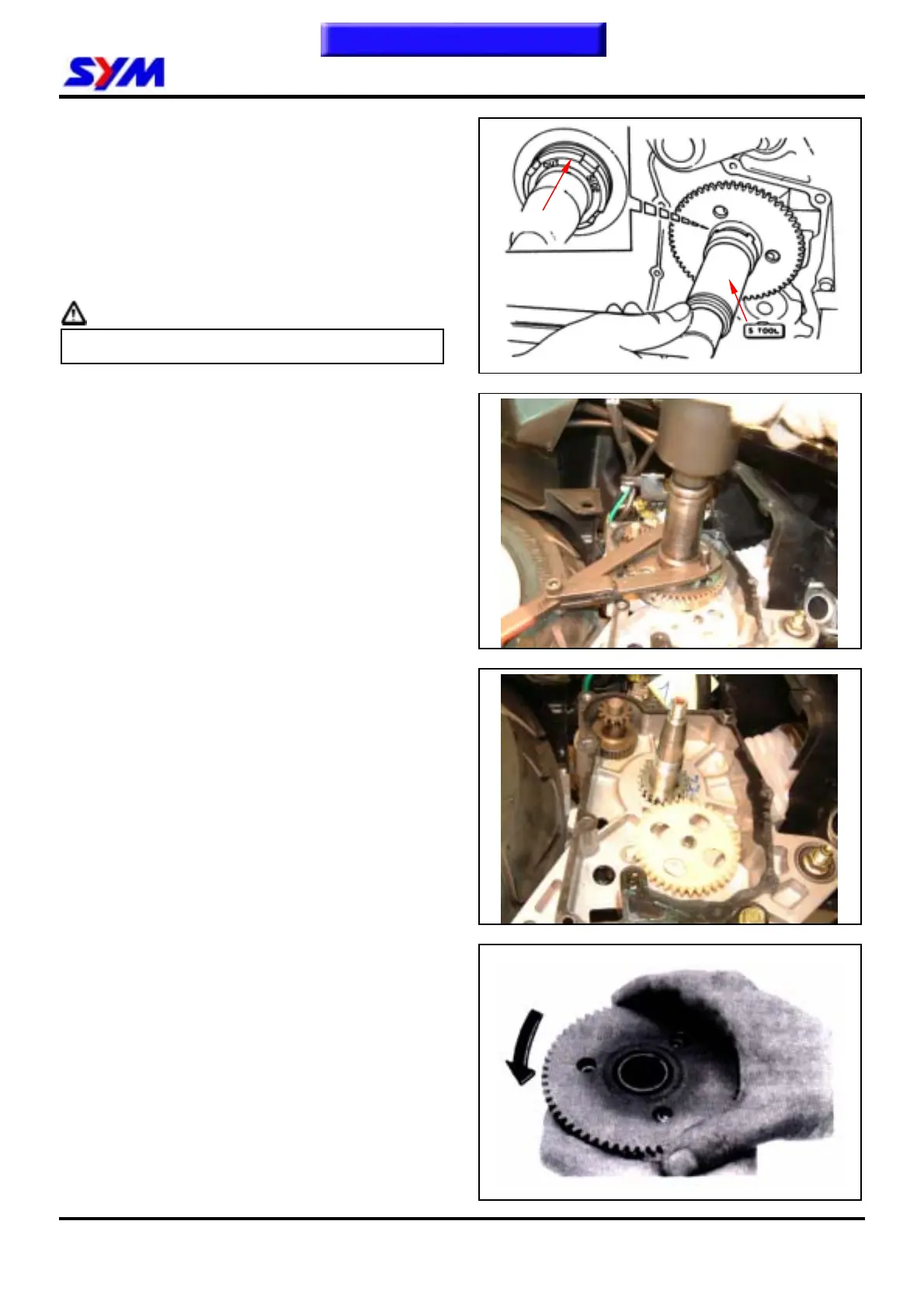

Starting Clutch
Starting Clutch Removal
Hold the starting driven gear with the universal
fixture.
Remove the 22mm anti-loosen mounting nut and
gasket.
Special service tools:
Nut puller of starter gear SYM-9020100
Universal fixture SYM-2210100
Caution
z The mounting nut is left-turn thread.
Remove the starting driven gear.
Remove starting clutch, starting idle-gear, and
shaft.
Starting Clutch Inspection
Install the starting clutch onto the starting driven
gear.
Hold the starting clutch and turn the starting driven
gear.
The starting driven gear should can be turned in
the motion of C.W. and can not be turned in
C.C.W.
Mounting nut
Mounting nut socket
