8. V-Belt Drive System / Kick Starter
8-3
Left Crankcase Cover

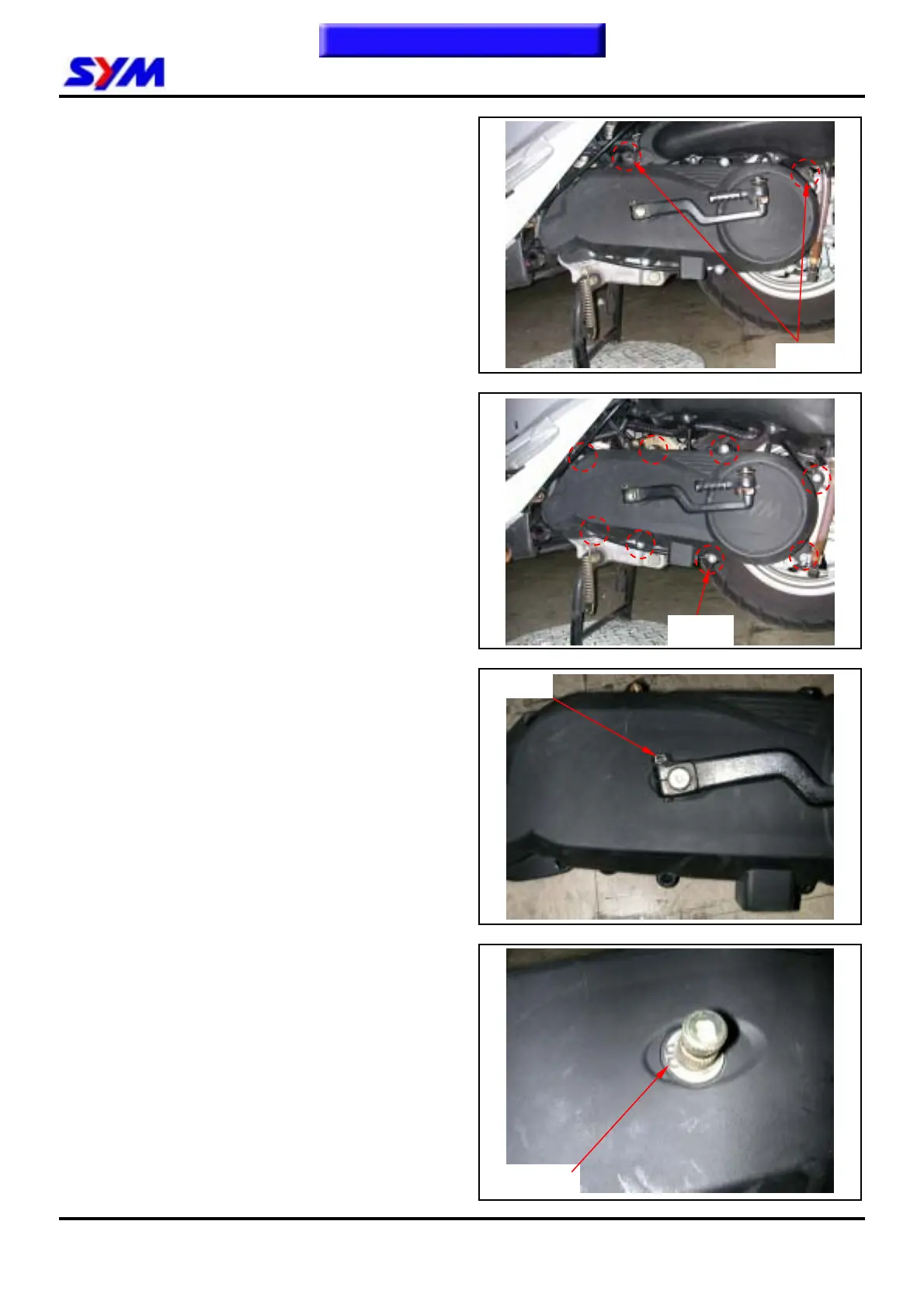

Left crankcase cover removal
Remove body cover
Remove air cleaner (2 bolts)
Remove left crankcase cover (8 bolts).
Installation of the left crankcase cover
Install the left crankcase cover (8 bolts)
Tighten the air cleaner (2 bolts)
Kick Starter
Disassembly
Remove left crankcase cover.
Remove kick starter arm (1 bolt).
Remove snap ring and thrust washer from left
crankcase cover.
2 bolts
8 bolts
Snap ring
1 bolt
