Sym Mio 50 User Manual

6. Cylinder Head / Valve
6-4

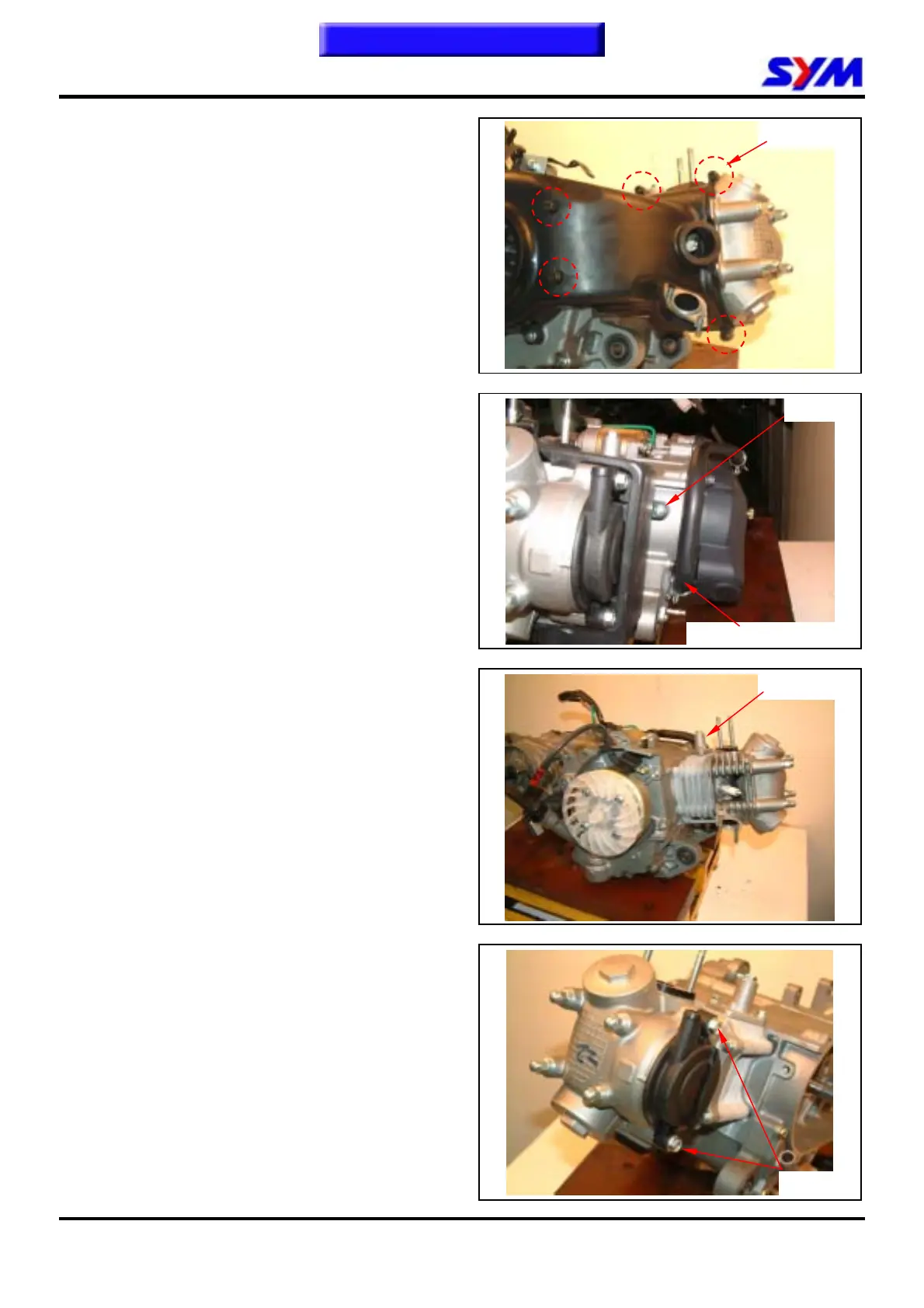

Cylinder Head Removal
Remove the right cooling shroud from the engine
outer cover. (5 screws)
Remove the left cooling shroud (1 bolt).
Remove the crankcase blow-by system hose from
the cylinder head.
Remove the cam chain tensioner (2 bolts).
Remove the cylinder head side cover. (2 bolts)
5 Screws
Tensioner
2 bolts
Blow-by system hose
1 bolt
