Sym Mio 50 User Manual

3. Lubrication System
3-5
Oil Pump

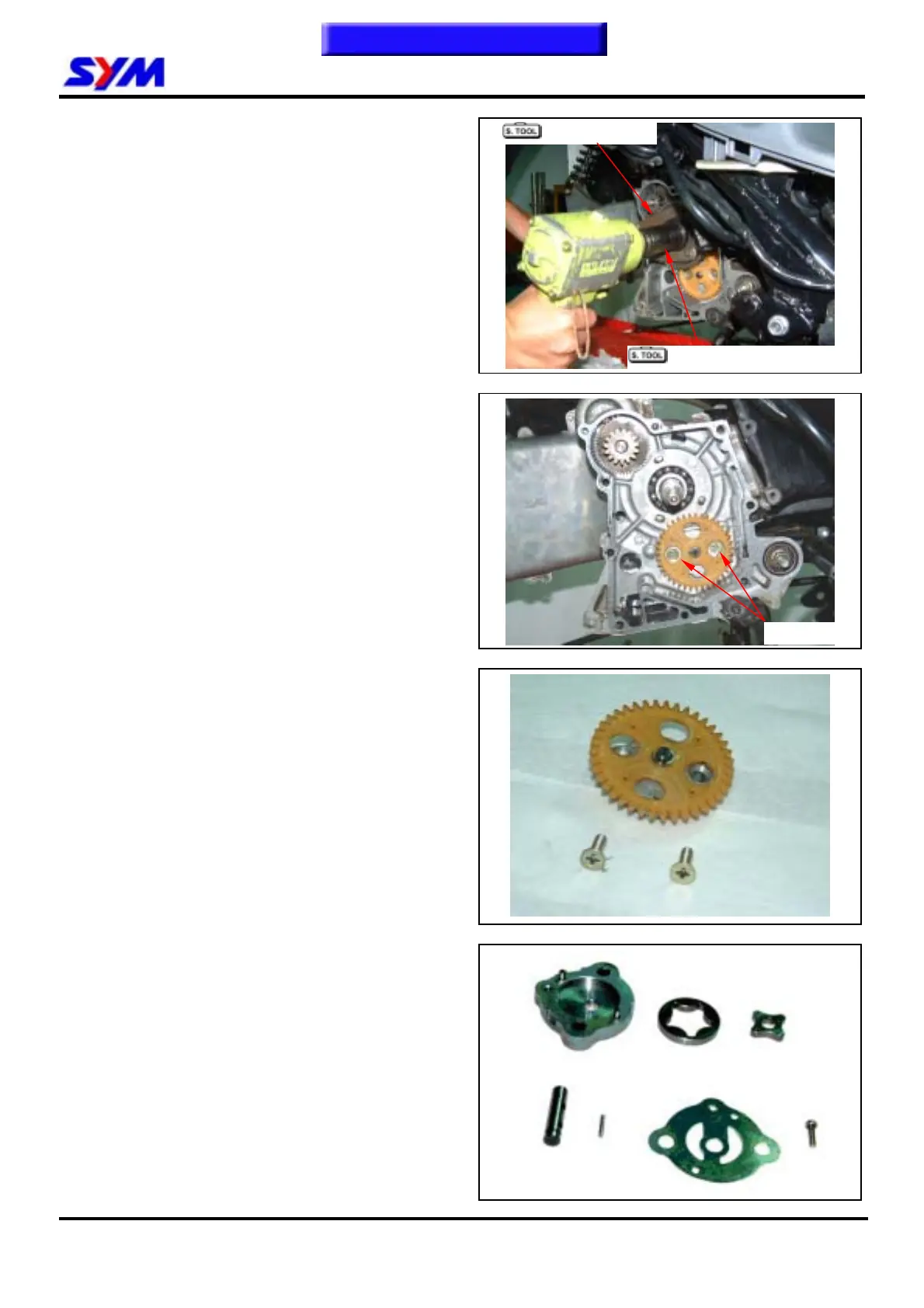

Oil Pump Removal
Remove the alternator (refer to chapter 10).
Remove the engine right cover.
Remove the one-way clutch and starting gear (1
nut)
Special Service Tools:
One way clutch socket SYM-9020100
Universal fixer SYM-2210100
Make sure that the pump axle can be rotated
freely.
Remove the oil pump cover (2 screws).
Remove the oil pump.
Oil Pump Disassembly
Remove the oil pump screw (1 screw) Take out
the oil pump cover, inner & outer rotors. Check
these parts after cleaned.
2 screws
Universal fixer
One way clutch socket
