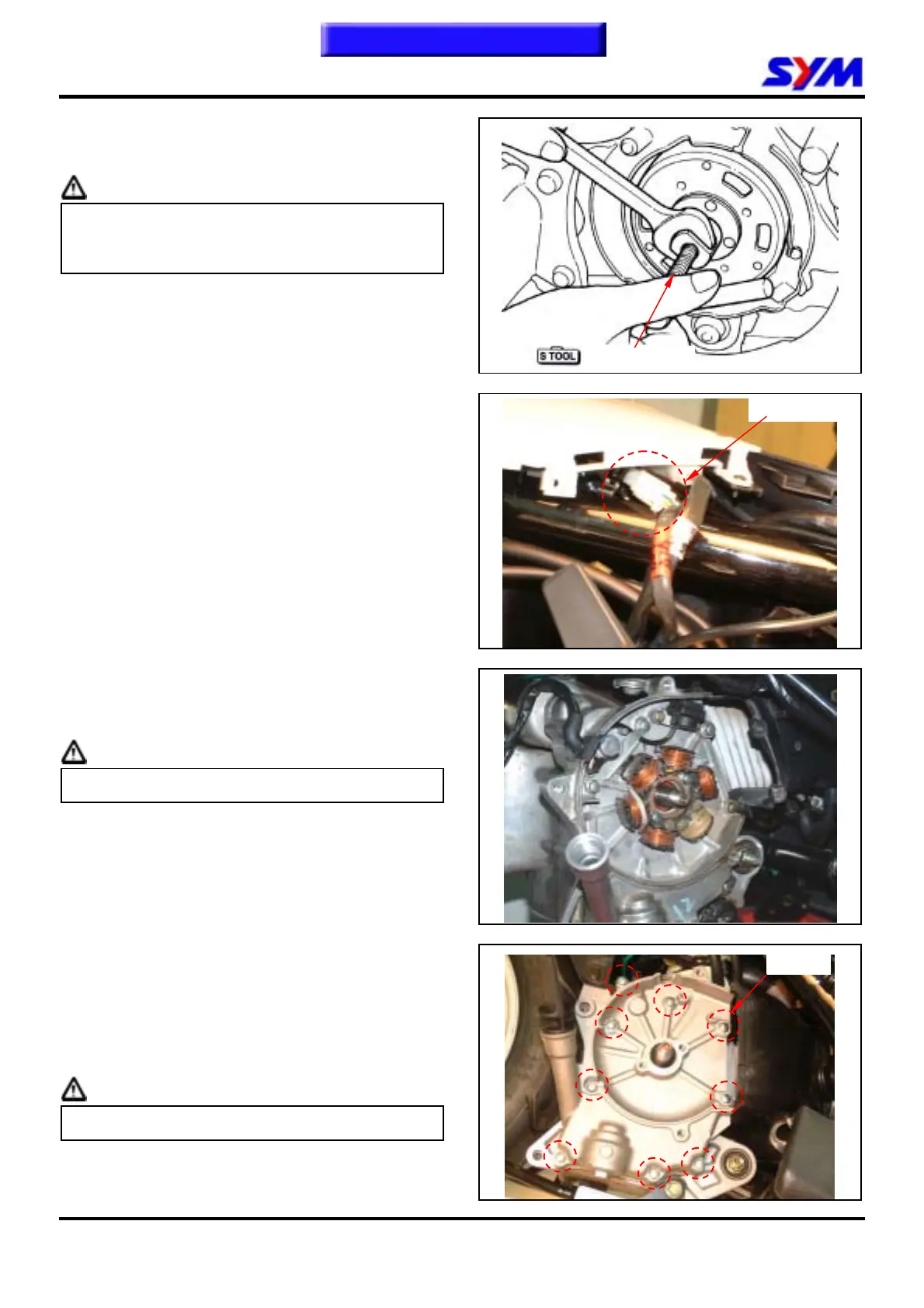

10. Alternator / Starting Clutch
10-4
Remove the flywheel with the flywheel puller.
Special service tools:
Flywheel puller SYM-3110000
Caution
z Install a shaft protector on the right end of
crankshaft to avoid damaging the crankshaft
before installing the flywheel puller.
Remove the connectors of the alternator and pulse
generator.
Remove the 6 bolts for the pulse generator, the
alternator coil and cable guide. Then, remove the
alternator assembly.
Caution
z Do not damage the alternator coil.
Right Crankcase Cover Removal
Remove the right crankcase cover (6 bolts)
Remove dowel pin and gasket.
Remove the gasket or foreign materials on the
connection surfaces of both the cover and
crankcase.
Caution
z Do not damage the connection surfaces.
9 bolts
Flywheel puller
Connectors
