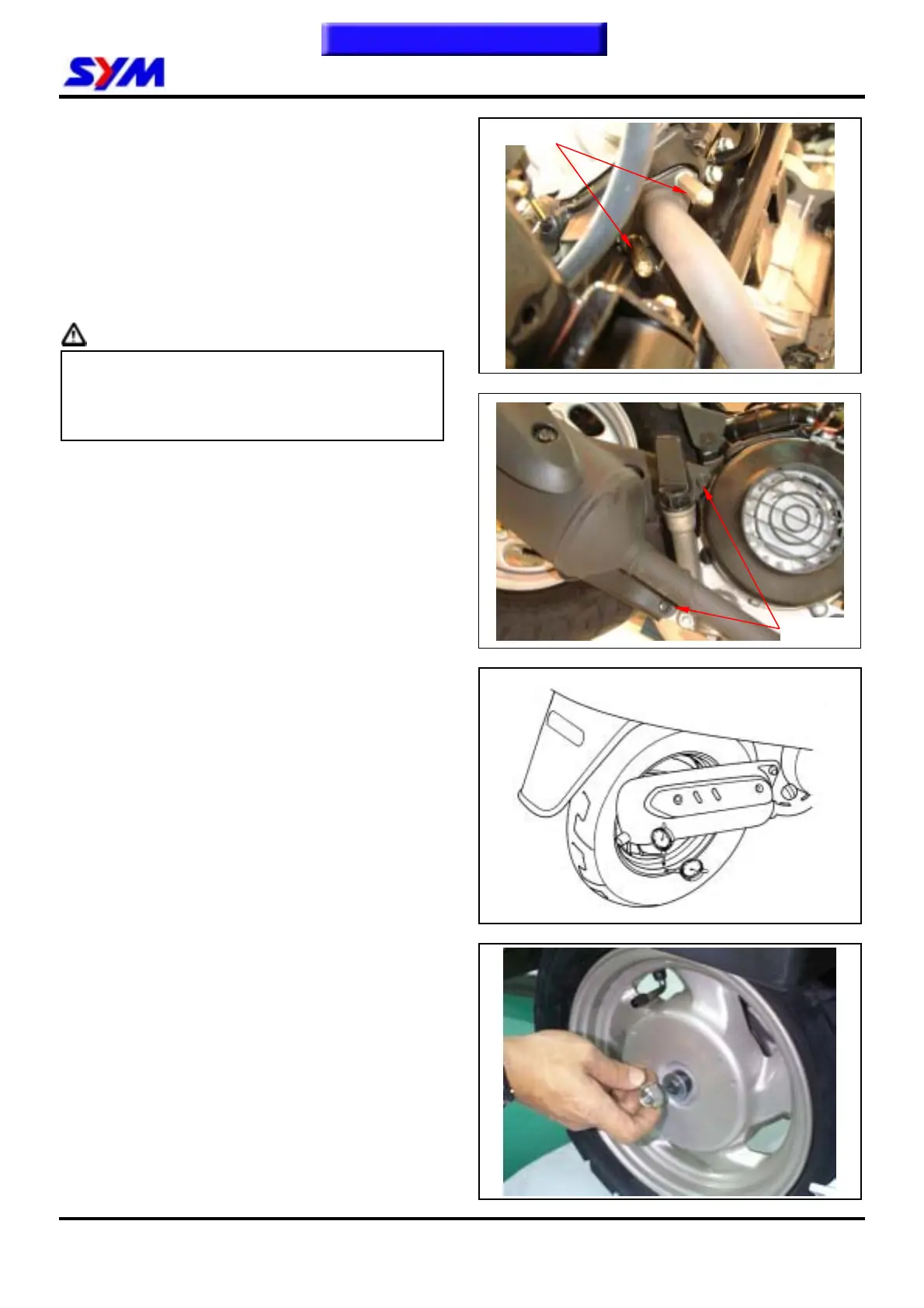

15. Rear Wheel / Rear Cushion
15-3
Exhaust Muffler
Removal
Remove the front-end nut of the exhaust muffler.
(2 nuts)
Remove the bolts. (2 bolts)
Remove the exhaust muffler.
Installation
Install the exhaust muffler according to the reverse
procedure of removal.
Caution
● Replace the exhaust muffler gasket if it is
broken or deformed. Before tightening the
exhaust bolts, it has to tighten the exhaust
nuts firstly.
Torque value:
Exhaust muffler connection bolt 3.0~3.6kgf-m
Exhaust muffler mounting nut 1.0~1.4kgf-m
Rear Wheel
Inspection
Measure wobbling of the wheel rim.
Service limit:
Radial: 2.0mm
Axial: 2.0mm
If the wheel rim wobbling out of the specification,
except resulted from the wheel rim deformation, it
might be loosen or worn final driving shaft bearing
or bend, deformed driving shaft.
Removal
Remove the exhaust pipe (2 bolts, 2 nuts)
Remove the rear wheel (1 wheel axle nut, 1
washer)
Installation
Install the rear wheel according to the reverse
procedure of removal.
Torque value: rear wheel nut 11.0~13.0kgf-m
2 Nuts
2 Bolts
