16. Electrical Equipment
16-15
Start System

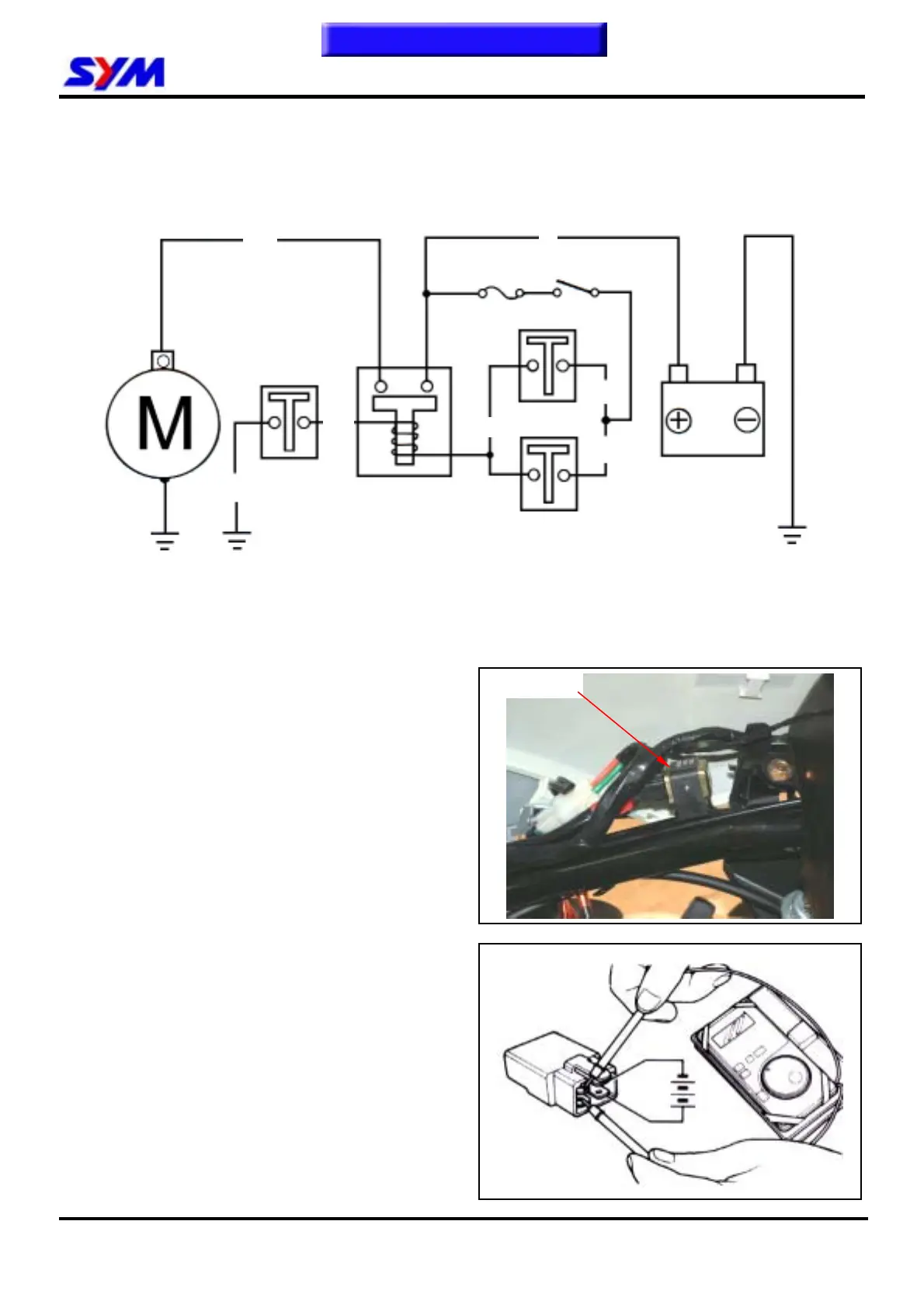

Start Circuit
Start relay inspection
Turn main switch ON.
Operate the brake lever.
Press start button.
If there a click sound, the start circuit is normal.
Remove the luggage box assembly.
Disconnect the battery negative (-) terminal.
Remove the battery positive (+) connection and
start motor wires from the start relay large pin.
Remove the power control coupler of the start
relay.
Connect an Ohmmeter between the start relay
large pins.
Connect the green/yellow wire to battery positive
(+) terminal, and yellow/red to battery negative (-)
terminal.
Check the continuity between the start relay large
pins. If it is not continuity, then replace the start
relay.
Fuse
Main
switch
Rear brake switch
Start switch
Starter relay
Start motor
R
Y/R
G/Y
Battery
Front brake switch
G
B
B
Start relay
R/W
W-White
Y-Yellow
G-Green
R-Red
B-Black
