13. Brake
13-8

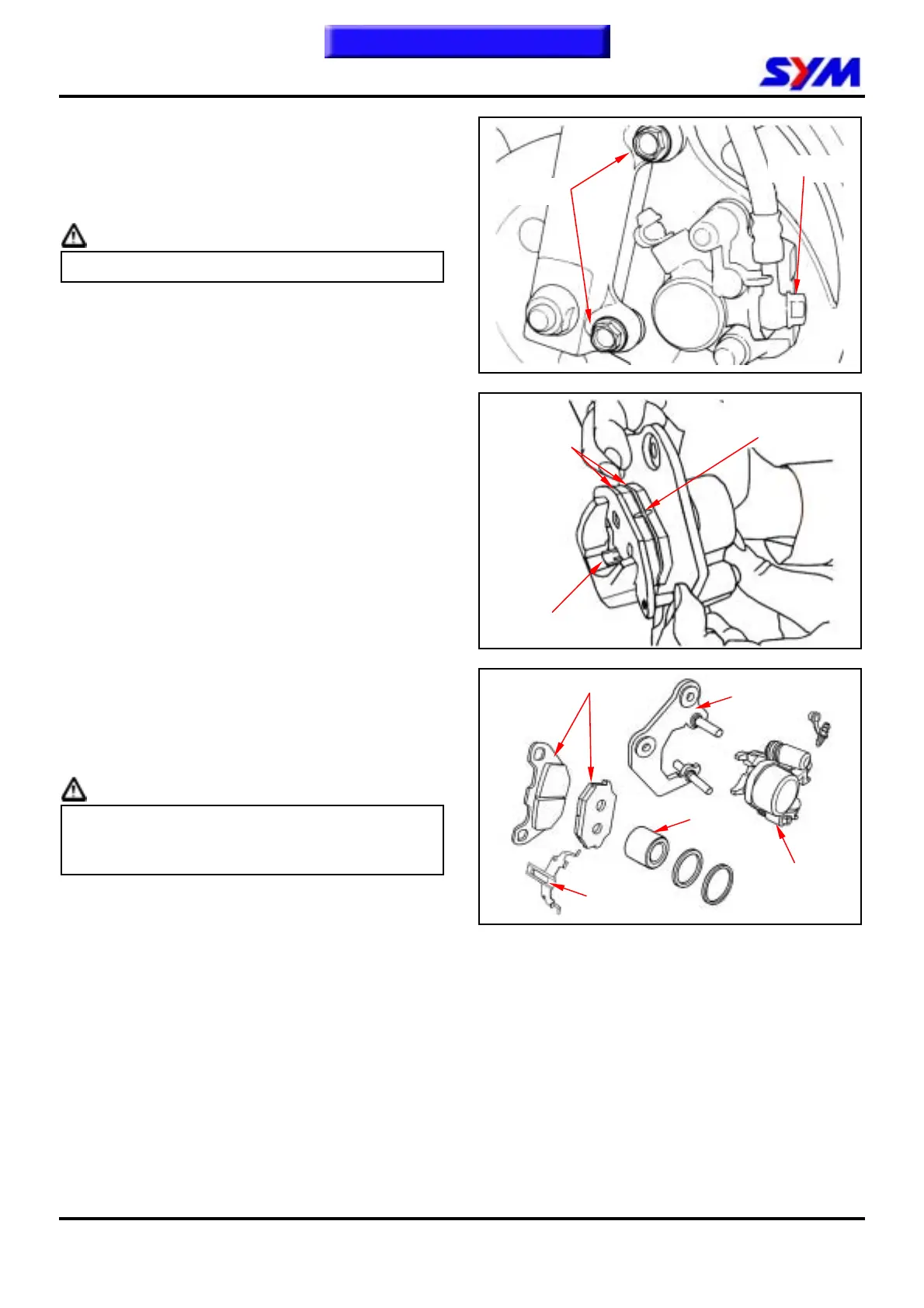

Brake Caliper
Removal
Place a container under the brake caliper, and
loosen the brake hose bolt and finally remove the
brake hoses.
Caution
● Do not spill brake fluid on painted surfaces.
Remove two caliper bolts and the caliper.
Make sure the brake lining condition. Replace
the lining if the brake lining wear limitation groove
close to the brake disc.
Brake Lining Replacement
Compress the caliper and let the brake lining out
of the caliper mounting plate. Compress the brake
lining locking spring. Remove the inner brake
lining firstly and then remove the outer brake
lining.
Compress the brake caliper at first as installation.
Install the inner brake lining firstly, and then install
the outer brake lining.
Installation
Install the brake caliper and tighten the attaching
bolts securely.
Torque: 3.1~3.5kgf-m
Caution
● Use M8 x 35 mm flange bolt only.
● Long bolt will impair the operation of brake
disc.
Use two seal washers and hose bolts to lock the
hose and brake caliper in place.
Torque: 3.3~3.7kgf-m
Refill up the brake fluid to the reservoir and make
necessary air bleeding.
Brake lining
Locking spring
Brake lining
Brake caliper
Brake lining wear
limitation groove
Caliper
mounting plate
2 Bolts
Hose bolt
Piston
Locking spring
