4. Fuel System
4-9
Fuel Tank

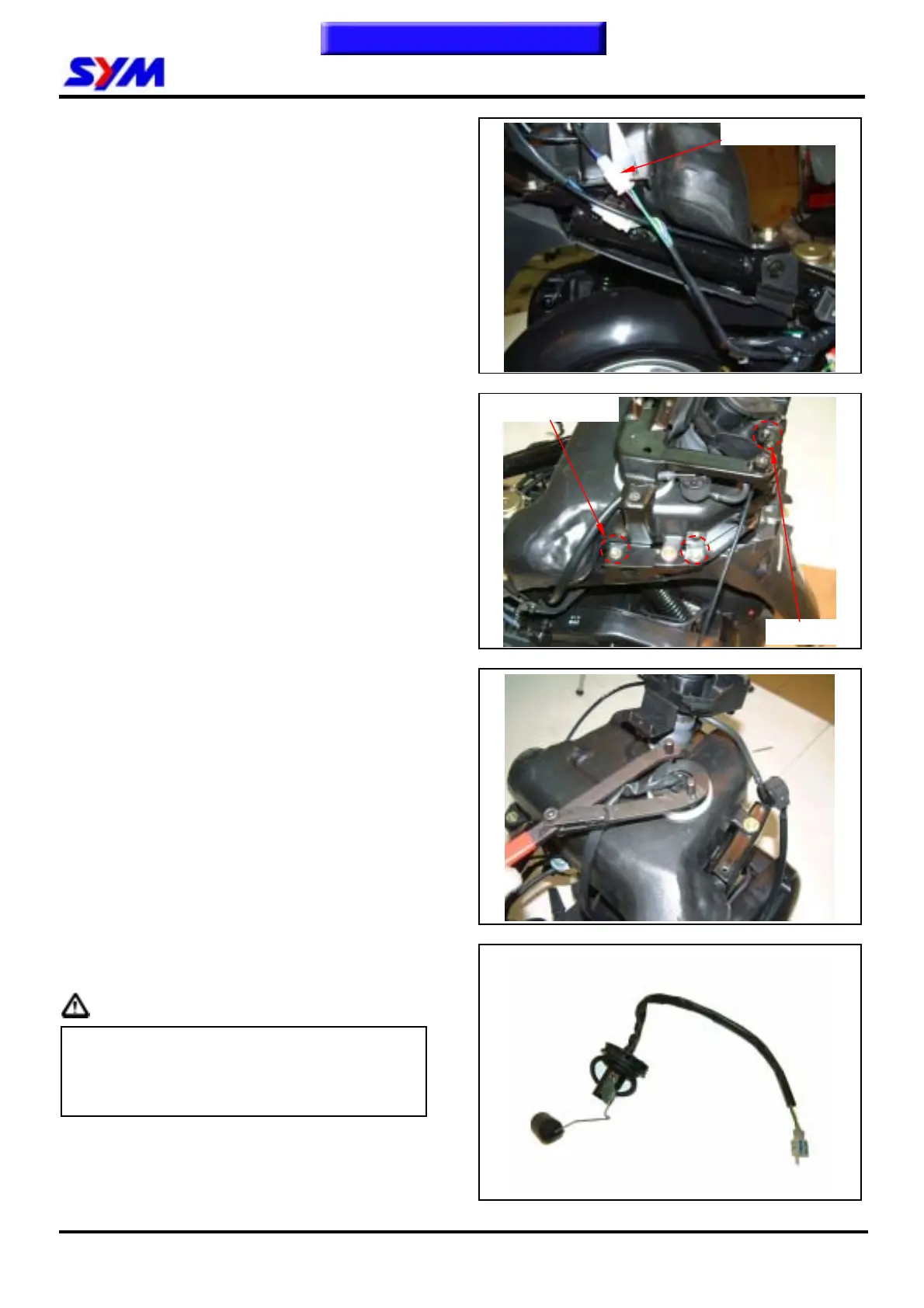

Fuel meter gauge removal
Remove the left and right side covers.
Open seat.
Remove the luggage box.
Remove rear carrier.
Remove the left and right body covers.
Remove the pedal (please refer to chapter 12 for
these components above.)
Remove fuel unit coupler.
Remove the rear bracket (4 bolts & 3 screws)
Turn fuel unit setting plate to the left, and then
remove fuel unit.
Special Service Tools:
Universal fixer SYM-2210100
Check if the float and washer is damaged.
Replace it with new ones if damaged.
Caution
z Do not bend the float arm of fuel metering
gauge.
z Do not fill out too much fuel to fuel tank
before operation.
Fuel unit coupler
Each side 2 bolts
3 screws
