16. Electrical Equipment
16-18
Light / Bulb

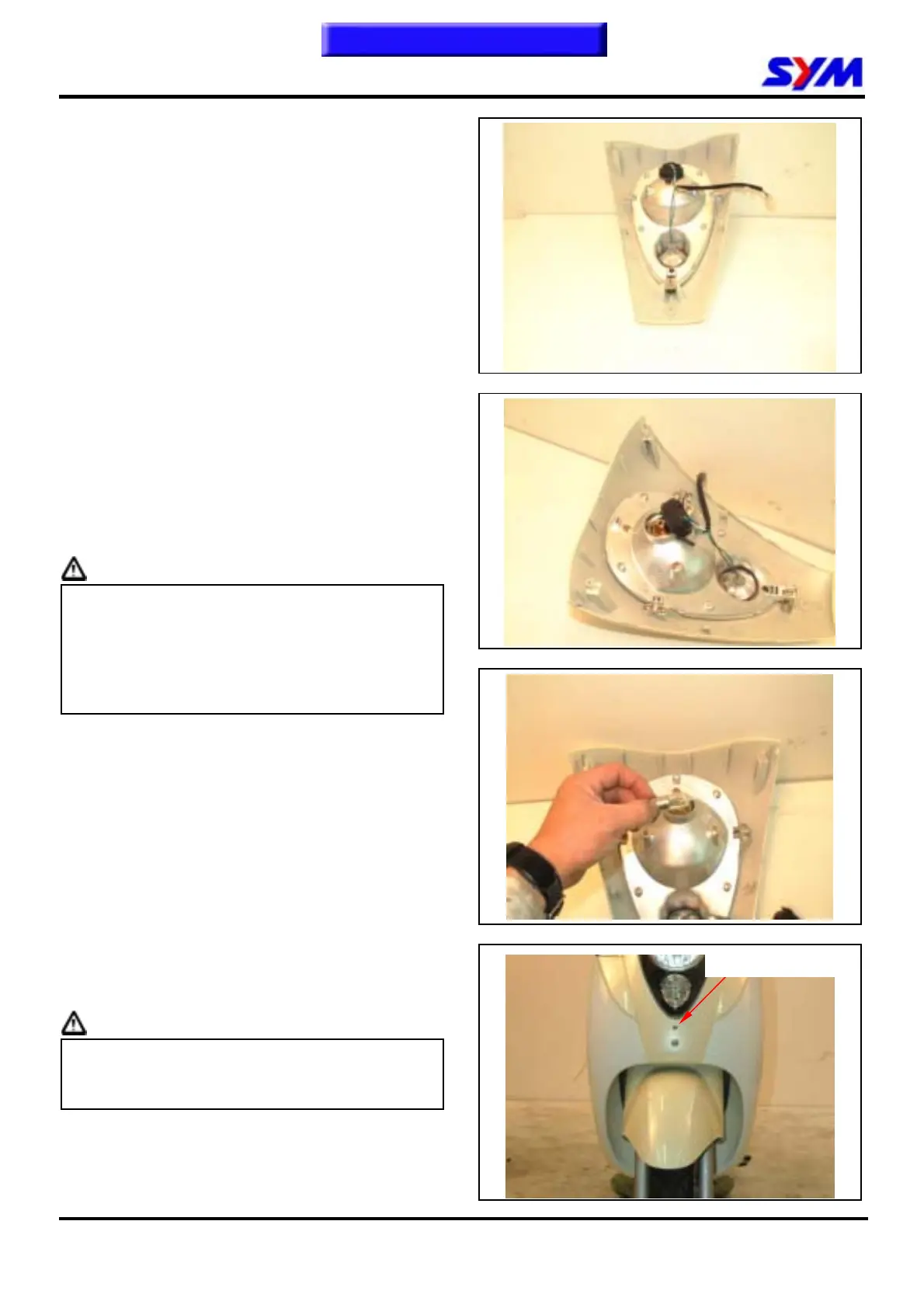

Headlight Bulb Replacement
Remove the front cover (3 screws)
Disconnect the headlight wire coupler.
Remove the rubber boot.
Press down the bulb spring locker and then
remove the locker with turning it left motion.
Remove the bulb.
Replace the bulb with new one if necessary. (12V
30W/30W)
Caution
z Do not touch the bulb surface with fingers
because the bulb will create hot-spot so that
let it be burnt. It has to be package with
cloth or wear glove as installing.
z Wipe the bulb with cloth to prevent from
damaged if the bulb be touched by hands.
Install the bulb in reverse order of removal.
Start engine and turn the light switch ON/OFF to
check if the bulb has been installed properly after
installation.
Please conducts the headlight beam adjustment
job if replace the headlight bulb.
The headlight beam adjustment
Turn the adjustment screw to right or left to adjust
the high or low beam of headlight.
Caution
● This outer cover of headlight is a fixed type
so that the light seat will be moved only when
adjusting.
Adjustment screw
