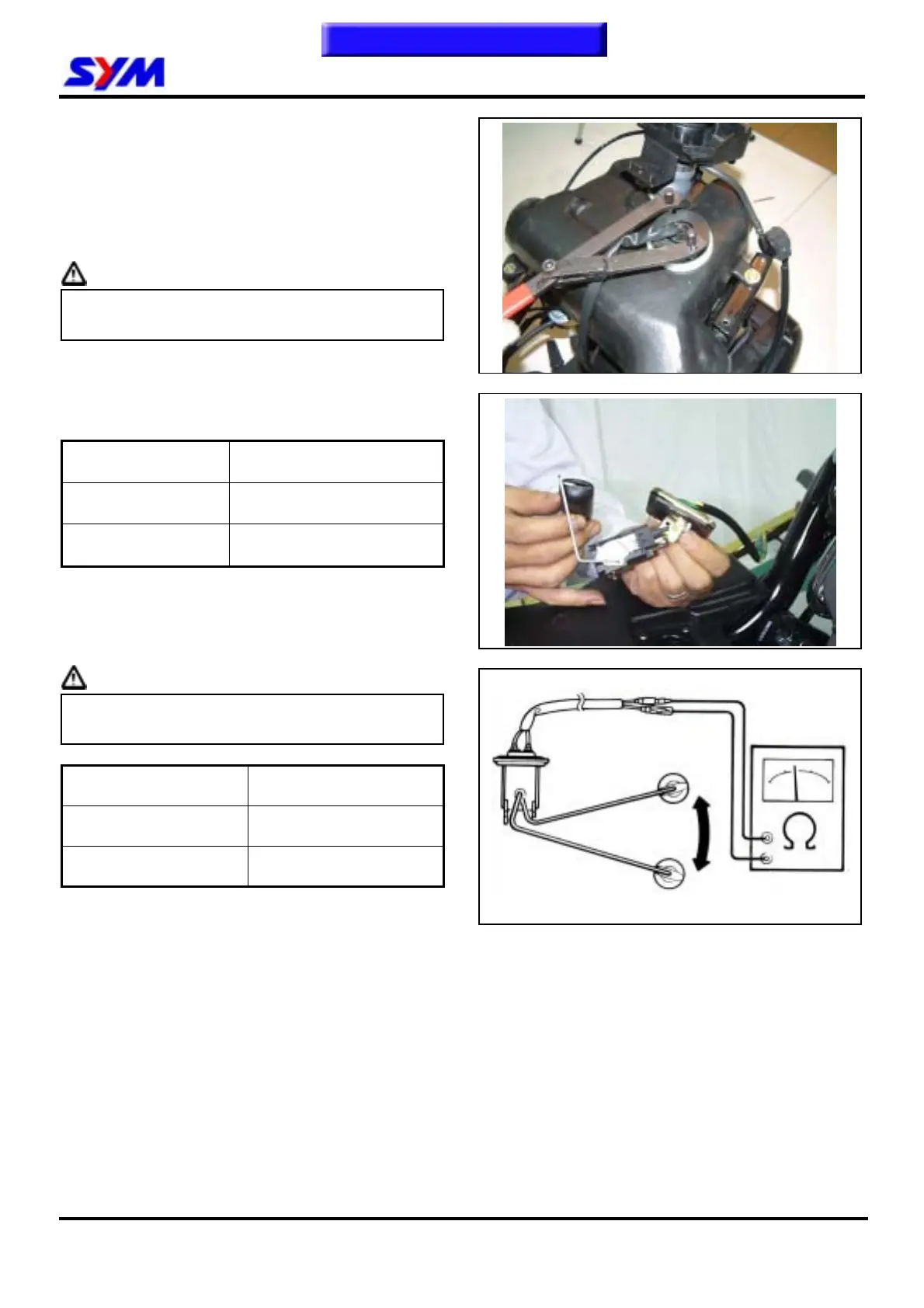

16. Electrical Equipment
16-25
Fuel Unit
Fuel Unit Remove
Fuel Tank Removal (Please refer to chapter 4 for
more detailed.)
Disconnect the fuel unit sender coupler.
Remove the fuel level sender.
Caution
● Do not damage or bend the float arm as
removing.
The resistance values are listed below when the
float arm in F and E positions.
Float arm position Resistance value
E(empty) 97.5~107.5 Ω
F(full) 4~10 Ω
Connect the fuel unit sender to the main harness.
Turn the main switch ON.
Move the float arm in UP & DOWN, and then
check if the fuel unit indication needle is in correct
position.
Caution
z Turn on the turn signal light to make sure
battery is in good condition before this test.
Float arm position Indicator needle
UP(full) E(empty)
DOWN(empty) F(full)
UP (full)
DOWN (empty)
