–AUDIO & VISUAL SYSTEM FRONT NO.1 SPEAKER ASSY
67–5
2501Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
FRONT NO.1 SPEAKER ASSY
REPLACEMENT
HINT:
COMPONENTS: See page 67–1
1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY(See page 75–8)
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH(See page 75–8)
3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH(See page 75–8)
4. REMOVE FRONT DOOR TRIM BOARD SUB–ASSY LH(See page 75–8)

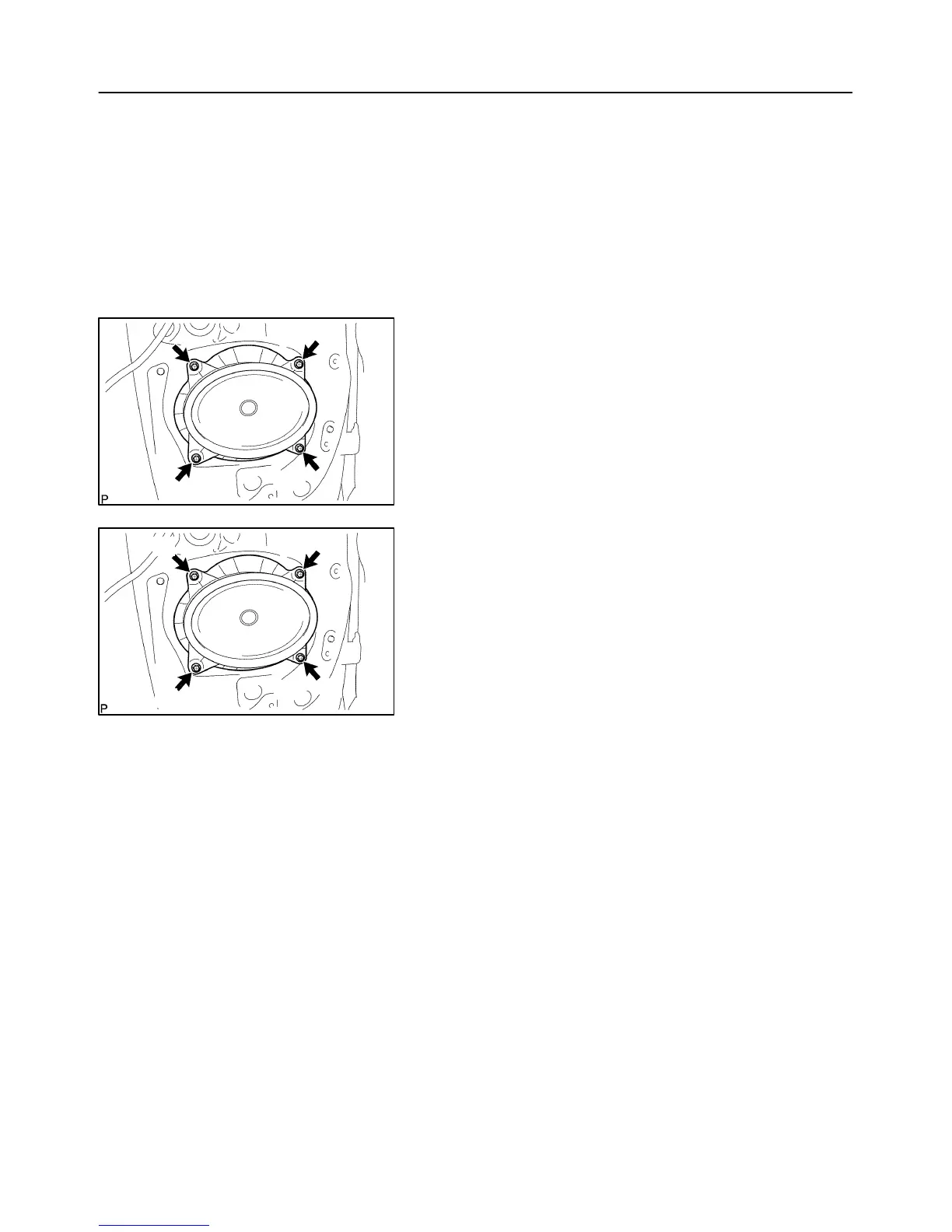

5. REMOVE FRONT NO.1 SPEAKER ASSY
(a) Disconnect the connector.
(b) Remove the 4 screws and front No.1 speaker assy.
6. INSTALL FRONT NO.1 SPEAKER ASSY
(a) Install the front No.1 speaker assy with the 4 screws.
NOTICE:
Install them in the order shown in the illustration.
(b) Connect the connector.
