–STARTING & CHARGING STARTING SYSTEM (2AZ–FE)
19–1
1873Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
STARTING SYSTEM (2AZ–FE)
INSPECTION
1. STARTER ASSY
NOTICE:
These tests must be done within 3 to 5 seconds to avoid
burning out the coil.

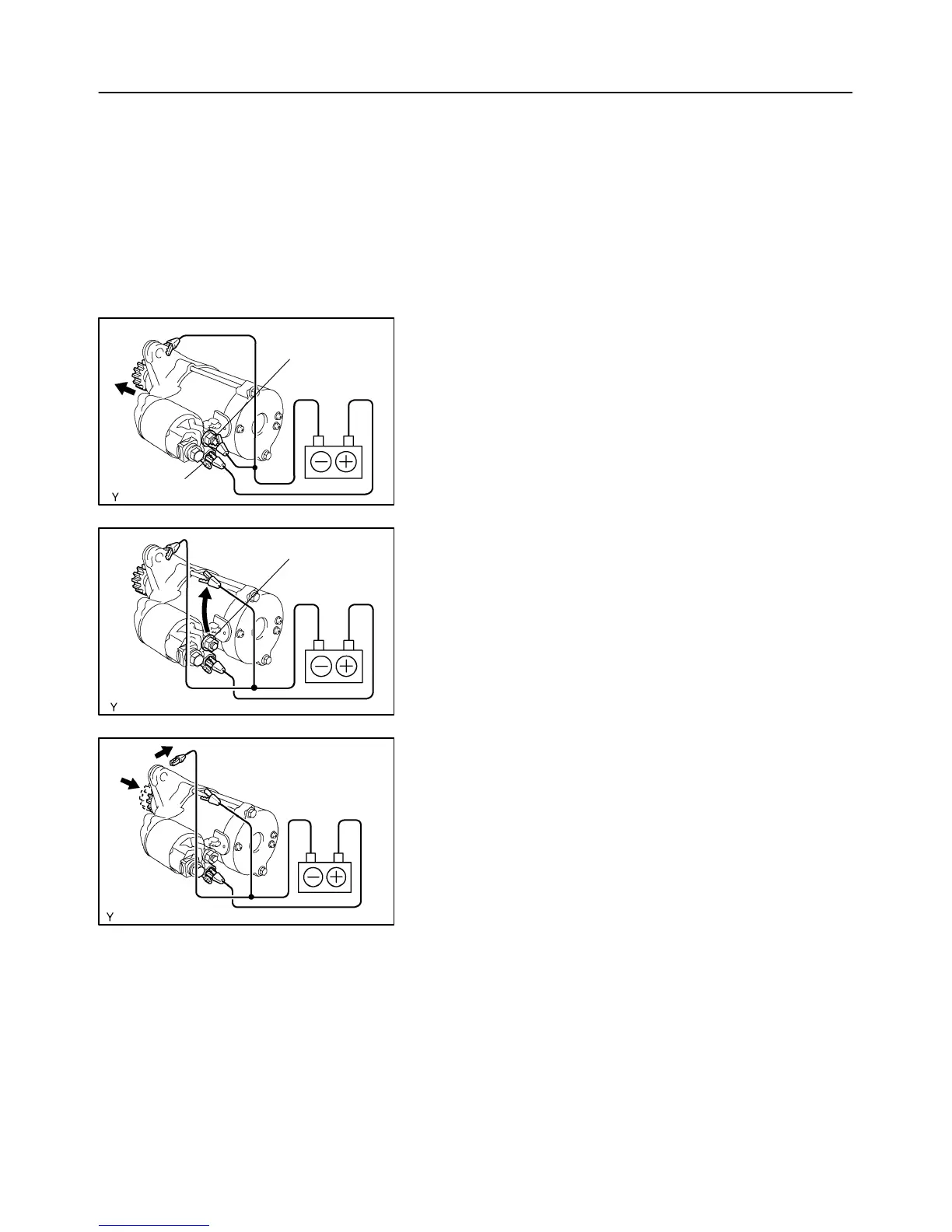

(a) Disconnect the field coil lead wire from terminal C.
(b) Connect the battery to the magnetic switch as shown.
Check that the clutch pinion gear moves outward.
(c) With battery connected as above with the clutch pinion
gear out, disconnect the negative (–) lead from terminal
C. Check that the pinion gear remains out.
(d) Disconnect the negative (–) lead from the switch body.
Check that the clutch pinion gear returns inward.
(e) Connect the lead wire to the terminal C with the nut.
Torque: 5.9 N⋅m (60 kgf⋅cm, 52 in.⋅lbf)
