–COMMUNICATION SYSTEM GARAGE DOOR OPENER SYSTEM
69–5
2531Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
GARAGE DOOR OPENER SYSTEM
REGISTRATION
1. NEW CODE REGISTRATION
NOTICE:
If pressing the switch of the original transmitter to register a code, the system might operate.
When registering the transmitter codes such as for garage, gate or something, check that there
is nobody around then register them.
(a) Press the switch for the item to be registered for 20 seconds.
HINT:
When transferring to the registration mode, LED (red) blinks in 1 Hz cycle.
(b) In the condition of step (a), bring the original transmitter
within 1–inch area around the garage door opener and
press the switch (code transmitting).
HINT:
When code registration is complete correctly, LED (red) blinks
in 5.6 Hz cycle.

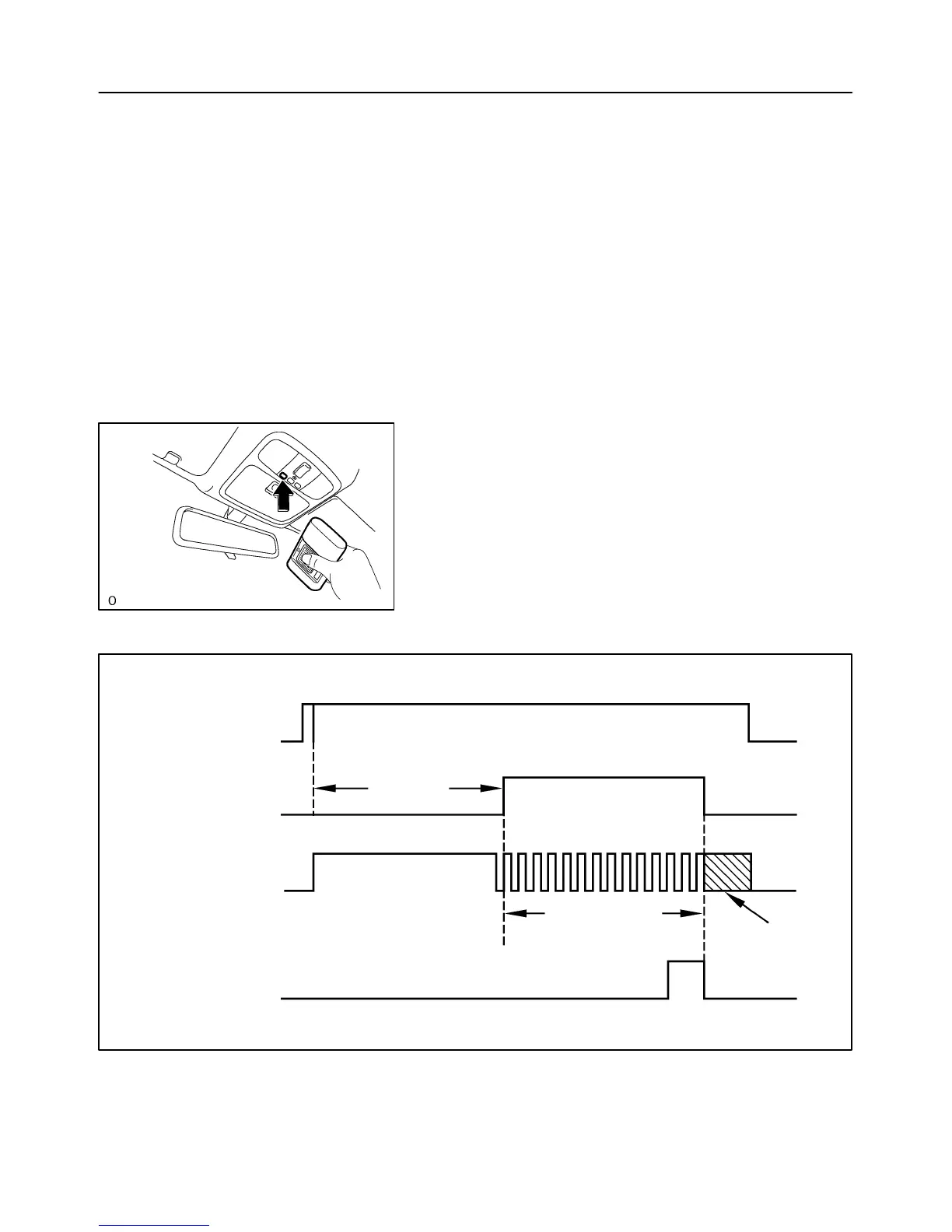

New code registration timing chart
To Next Page
