550C3–01
I31523
Clamp
I31524
55–46
–HEATER & AIR CONDITIONER BLOWER ASSY
2361Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
OVERHAUL
HINT:
COMPONENTS: See page 55–45
1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB–ASSY
(See page 71–12)
2. REMOVE HEATER TO FOOT DUCT NO.1
(See page 55–29)
3. REMOVE BLOWER ASSY
(See page 55–29)
4. REMOVE AIR REFINER ELEMENT
5. REMOVE COWL WIRE NO.2

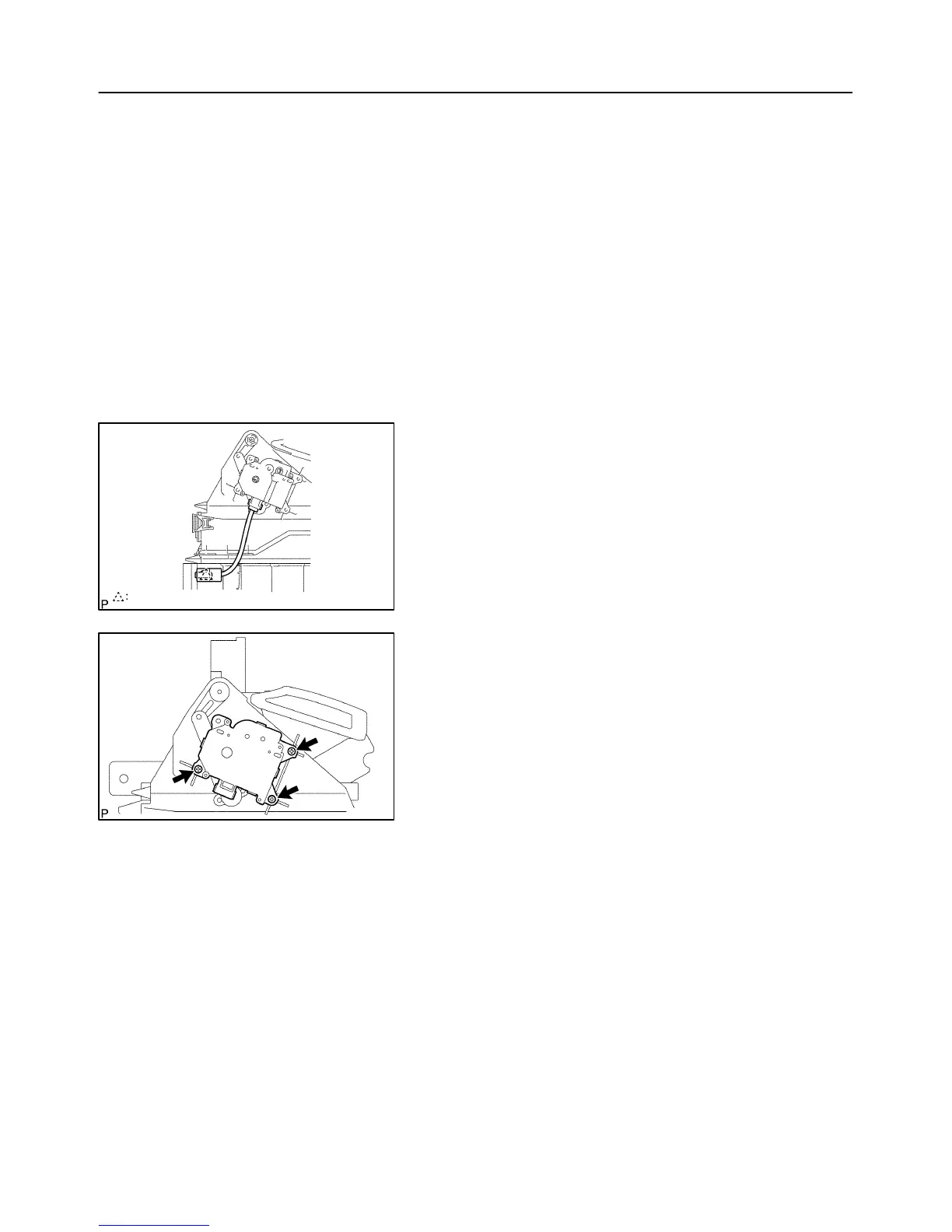

(a) Remove the clamp and cowl wire No. 2.
6. REMOVE RECIRCULATION DAMPER SERVO
SUB–ASSY
(a) Remove the 3 screws and recirculation damper servo
sub–assy.
