3006G–01
F40146
SST
F40136
C83022
30–8
–DRIVE SHAFT / PROPELLER SHAFT FRONT DRIVE SHAFT
1962Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
FRONT DRIVE SHAFT
OVERHAUL
NOTICE:
Do not disassemble the outboard joint.
HINT:
COMPONENTS: See page 30–4
Overhaul the RH side by the same procedures with LH side.
1. DRAIN AUTOMATIC TRANSAXLE FLUID(A/T TRANSAXLE)
2. DRAIN MANUAL TRANSAXLE OIL(M/T TRANSAXLE)
3. REMOVE FRONT WHEEL
4. REMOVE FRONT AXLE HUB LH NUT

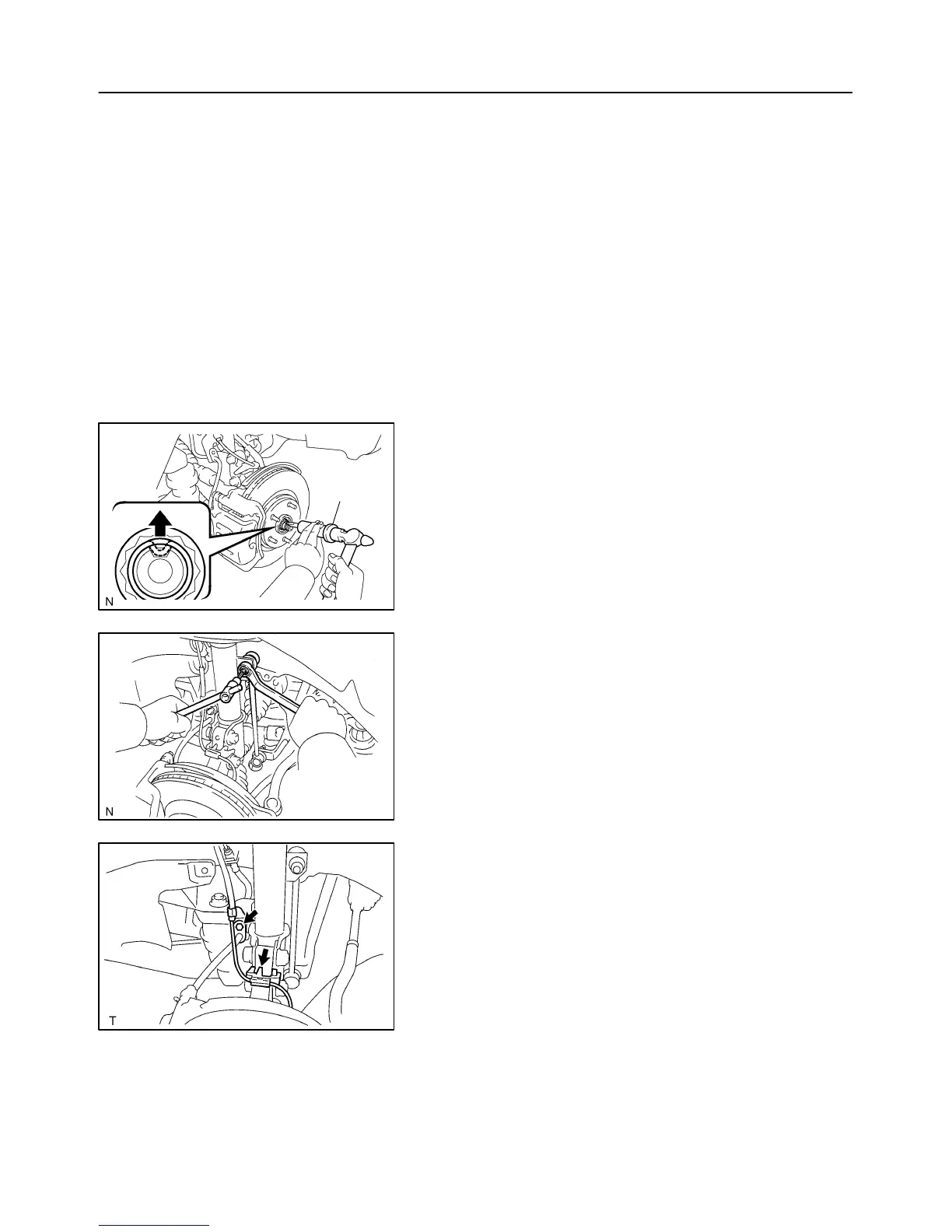

(a) Using SST and a hammer, unstake the staked part of the
front axle hub LH nut.
SST 09930–00010
NOTICE:
Loosen the staked part of the lock nut completely, other-
wise the screw of the drive shaft may be damaged.
(b) While applying the brakes, remove the front axle hub LH
nut.
5. DISCONNECT FRONT STABILIZER LINK ASSY LH
(a) Remove the nut, disconnect the front stabilizer link assy
LH from the shock absorber assy front LH.
HINT:
If the ball joint turns together with the nut, use a hexagon
wrench (6 mm) to hold the stud.
6. DISCONNECT SPEED SENSOR FRONT LH(W/ ABS)
(a) Remove the sensor wire clamp.
(b) Remove the bolt, disconnect the sensor wire and front
flexible hose No.1 from the shock absorber assy front LH.
To Next Page
