–MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY
41–11
2141Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
MANUAL TRANSAXLE ASSY
REPLACEMENT

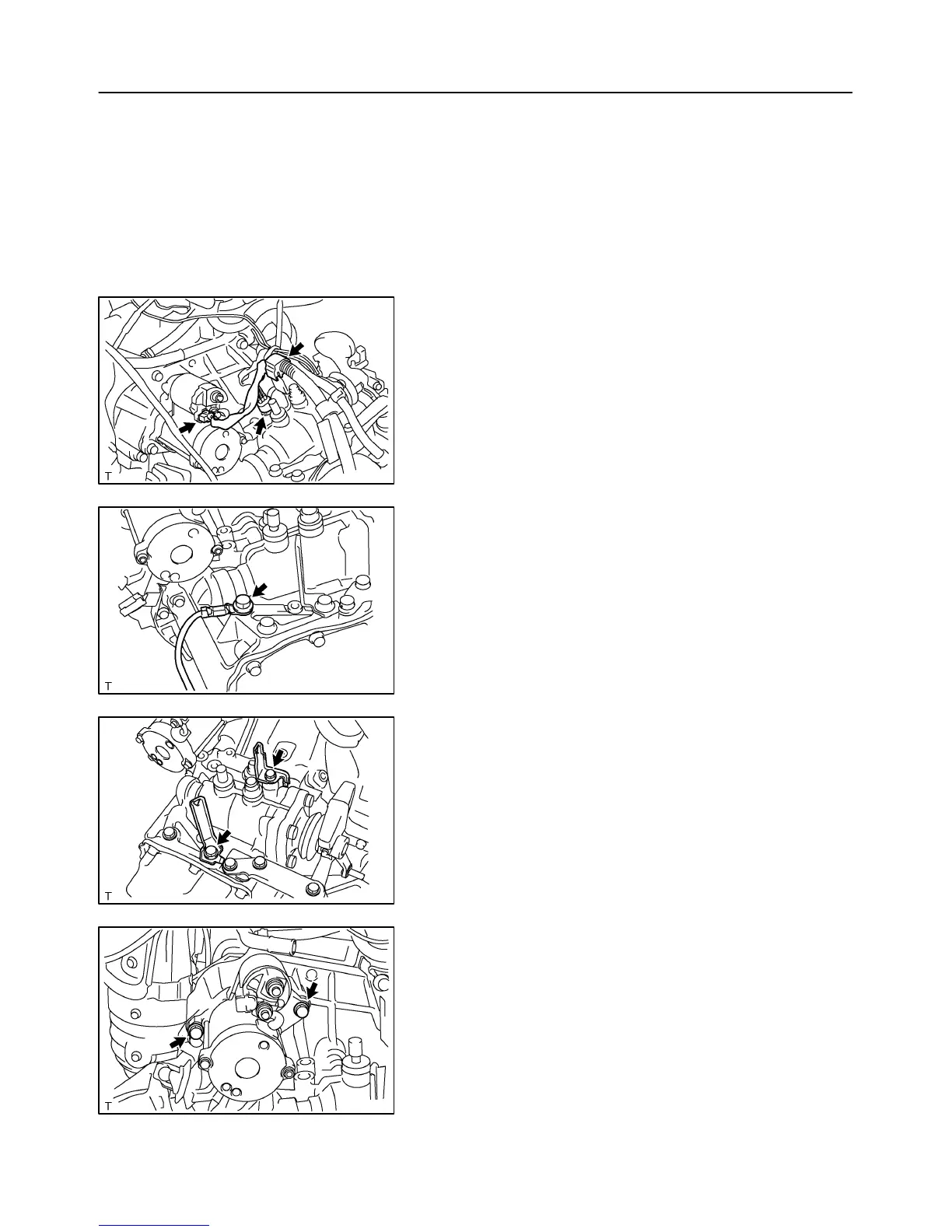

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE(See page 14–22)
2. REMOVE FRONT DRIVE SHAFT ASSY RH
(See page 30–8)
3. REMOVE FRONT DRIVE SHAFT ASSY LH
(See page 30–8)
4. DISCONNECT WIRE HARNESS
(a) Disconnect the wire harness clamp.
(b) Disconnect the back–up lamp switch connector and start-
er connector.
5. REMOVE ENGINE WIRE NO.3
(a) Remove the bolt and engine wire No.3.
6. REMOVE WIRE HARNESS CLAMP
(a) Remove the 2 bolts and 2 wire harness clamps.
7. REMOVE STARTER ASSY
(a) Remove the 2 bolts and starter assy.
To Next Page
