A58810
Length
A58587
A58806
A57561
19–8
–STARTING & CHARGING STARTER ASSY (2AZ–FE)
1880Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

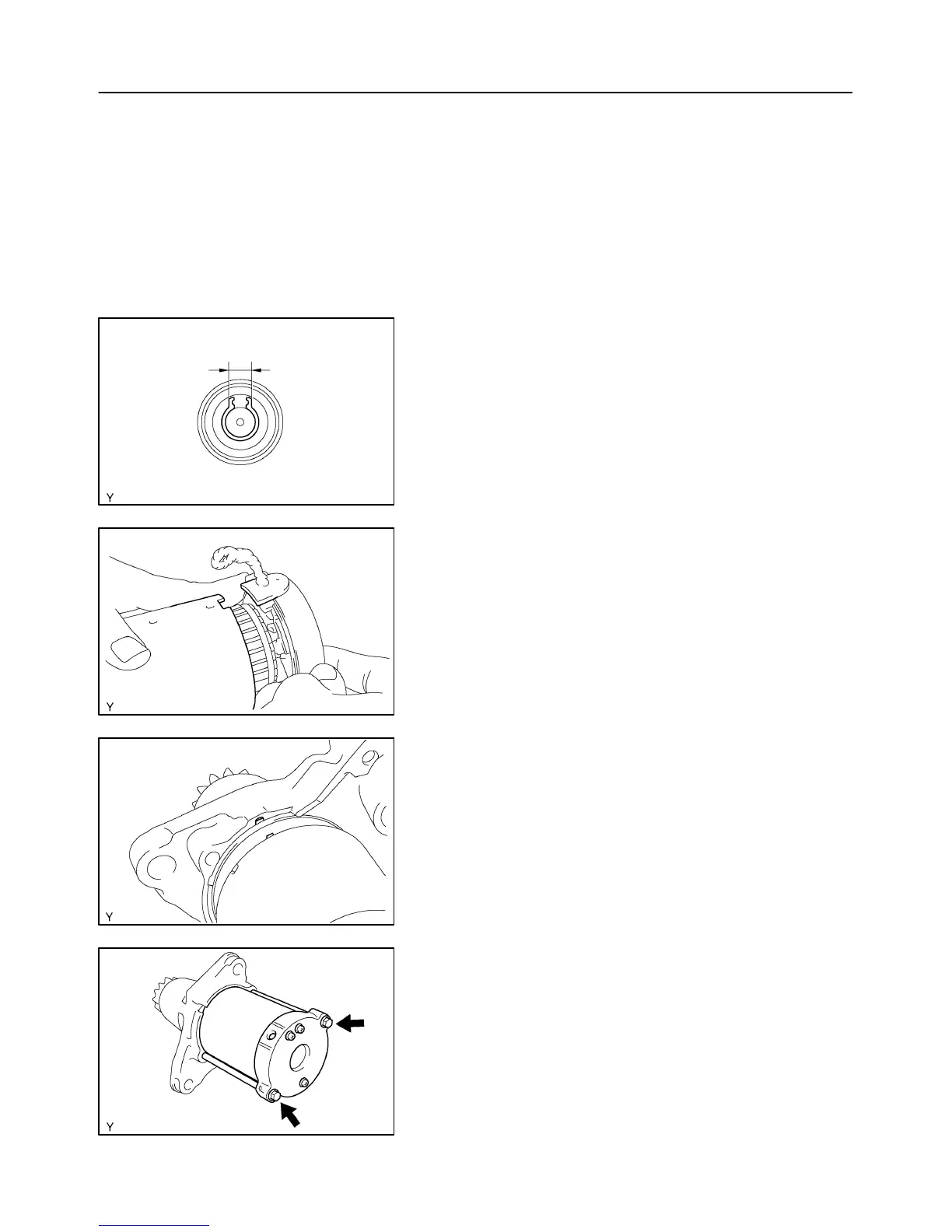

7. INSTALL STARTER ARMATURE ASSY
(a) Apply grease to the washer plate and armature shaft.
(b) Install the armature shaft to the starter commutator end
frame assy.
(c) Using snap ring pliers, install the plate washer and new
snap ring.
(d) Using vernier calipers, mesure the snap ring.
Maximum length: 5.0 mm (0.197 in.)
If the length is greater than maximum, replace the new snap
ring.
8. INSTALL STARTER COMMUTATOR END FRAME
ASSY
(a) Align the starter commutator rubber end frame with the
cutout of starter yoke.
(b) Install starter yoke assy to starter commutator end frame.
(c) Align the starer yoke assy with the cutout of motor termi-
nal starter kit.
(d) Install the starter yoke assy with the 2 through bolts.
Torque: 6.0 Nâ‹…m (61 kgfâ‹…cm, 53 in.â‹…lbf)
