2002 CAMRY REPAIR MANUAL (RM881U)
PARKING BRAKE CABLE ASSY NO.4
REPLACEMENT
HINT:
COMPONENTS: See page 33–3
1. REMOVE CONSOLE PANEL UPPER REAR
(See page 71–12)
2. REMOVE CONSOLE BOX CARPET
(See page 71–12)
3. REMOVE RR CONSOLE BOX(See page 71–12)
4. REMOVE CONSOLE BOX MOUNTING BRACKET NO.2
(a) Remove the 2 bolts and console box mounting bracket No.2.
5. REMOVE YAWRATE SENSOR(W/ VSC)
(See page 32–61)

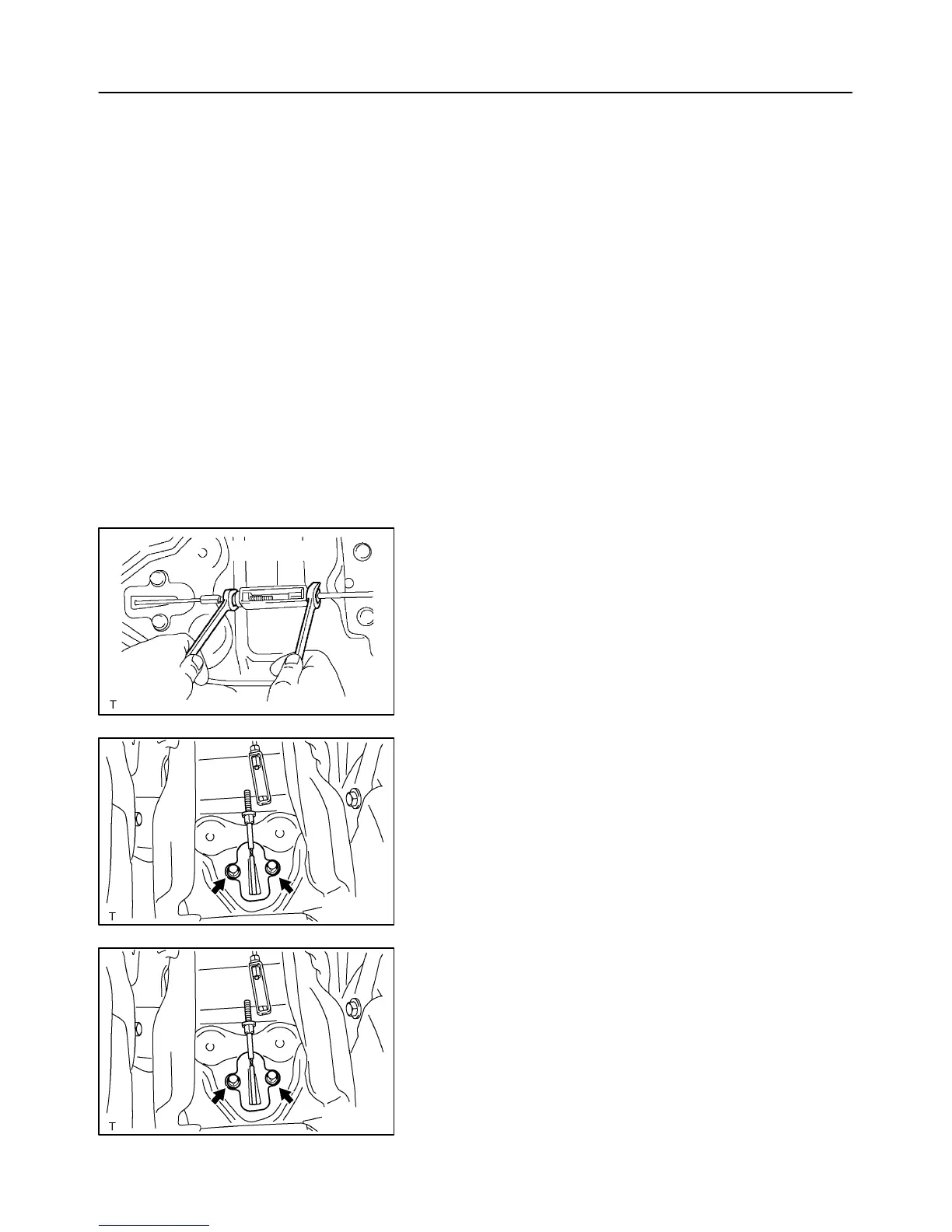

6. REMOVE PARKING BRAKE CABLE ASSY NO.4
(a) Loosen the turn buckle, disconnect the parking brake
cable assy No.4 from the parking brake cable assy No.1.
(b) Disconnect the parking brake cable assy No.4 from the
parking brake equolizer.
(c) Remove the 2 bolts and parking brake cable assy No.4.
7. INSTALL PARKING BRAKE CABLE ASSY NO.4
(a) Install the parking brake cable No.4 with the 2 bolts.
Torque: 12.5 Nâ‹…m (128 kgfâ‹…cm, 9 ftâ‹…lbf)
(b) Connect the parking brake cable assy No.4 to the parking
brake equolizer.
To Next Page
