FUEL FUEL SYSTEM (2AZ–FE)
11–5
1449Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
ON–VEHICLE INSPECTION
1. CHECK FUEL PRESSURE
(a) Prepare for inspection.

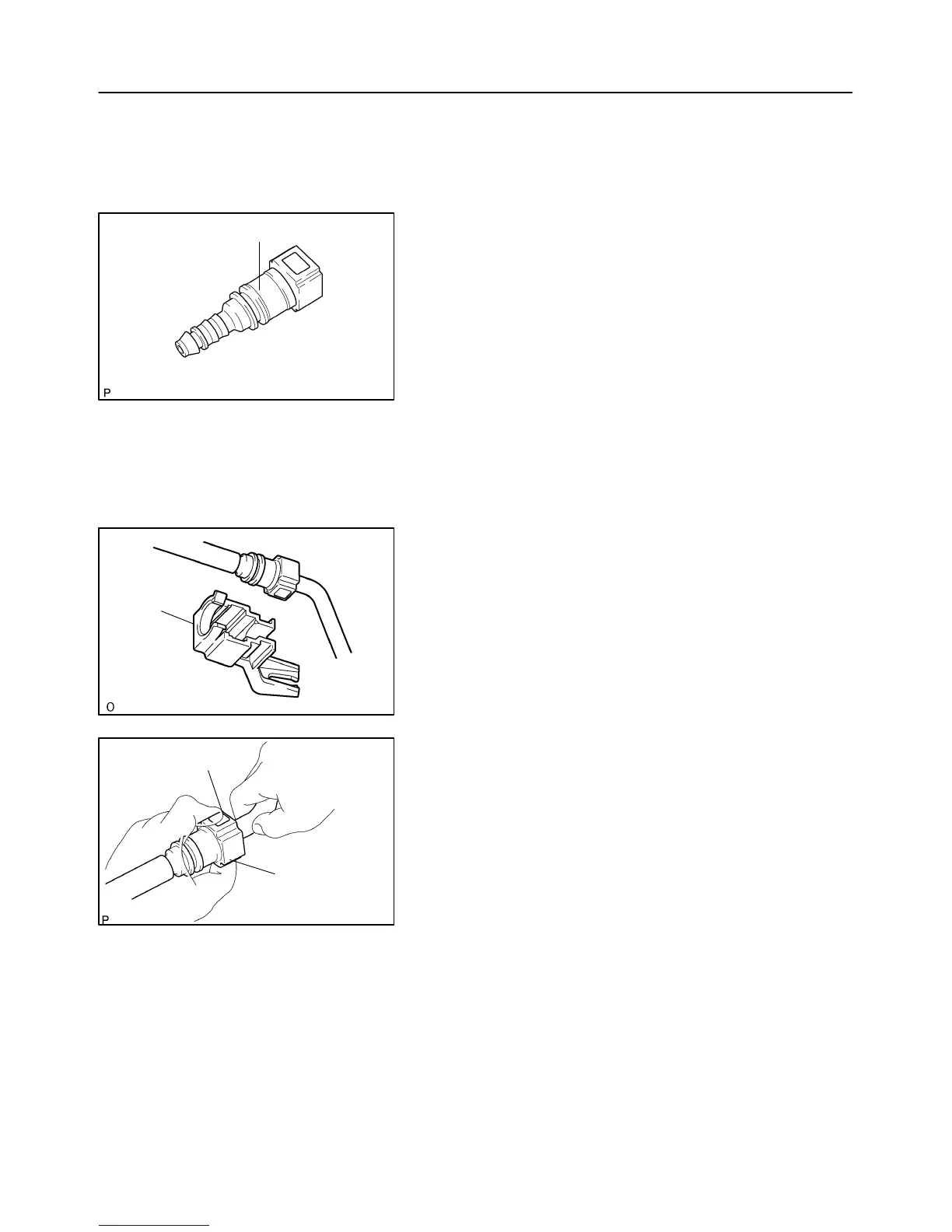

(1) Purchase the new fuel tube and take out the fuel
tube connector from its pipe.
HINT:
Part No. 23901–28130
(b) Work for prevent gasoline from spilling out.
(See page 11–1)
(c) Remove the fuel pipe clamp No.1 from the fuel tube con-
nector.
(d) Disconnect the fuel tube connector from the fuel pipe
while pinching part A with fingers as shown in the illustra-
tion.
CAUTION:
Perform disconnecting operations of the fuel tube
connector (quick type) after observing the precau-
tions.
As there is retained pressure in the fuel pipe line, pre-
vent it from splashing inside the engine compart-
ment.
