D26602
Example:
CORRECT
WRONG
Clear Plastic Bag
D26603
Example:
–INTRODUCTION REPAIR INSTRUCTION
01–13
13Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
(f) CURTAIN SHIELD AIRBAG ASSEMBLY

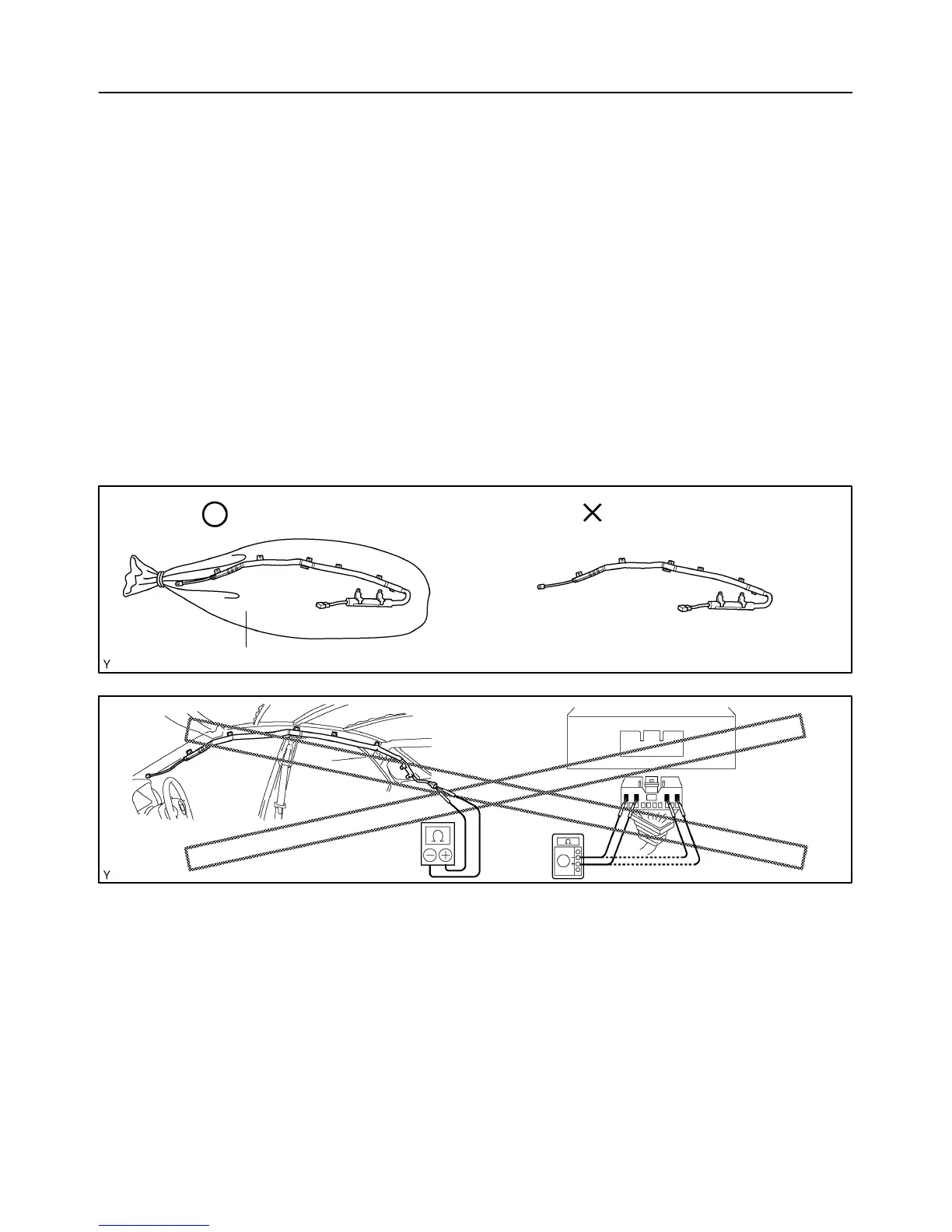

(1) Always store the removed or new curtain shield airbag assembly in a clear plastic bag, and keep
it in a safe place.
NOTICE:
Protection bag is not re–useable.
CAUTION:
Never disassemble the curtain shield airbag assembly.
(2) Never measure the resistance of the airbag squib (This may cause the airbag to inflate, which
is very dangerous).
(3) Grease should not be attached to the curtain shield airbag assembly, and the surface should not
be cleared with detergents of any kind.
(4) Store the airbag assembly where the ambient temperature remains below 93 °C (200 °F), with-
out high humidity and away from electrical noise.
(5) When using electric welding, first disconnect the airbag connector (2 yellow 2 pins) into the instru-
ment panel before starting work.
(6) When disposing of a vehicle or the curtain shield airbag assembly alone, the airbag should be
deployed using an SST before disposal (See page 60–44). Perform the operation in a safe place
away from electrical noise.
