–FUEL FUEL SYSTEM (1MZ–FE)
1470Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
FUEL SYSTEM (1MZ–FE)
PRECAUTION
1. PRECAUTION
(a) Before working on fuel system, disconnect negative (–) terminal cable from battery.
(b) Do not smoke or work near an open flame when working on fuel system.
(c) Keep gasoline away from rubber or leather parts.
2. WORK FOR PREVENT GASOLINE FROM SPILLING
OUT
CAUTION:
Perform disconnecting operation of the fuel system
parts after working for prevent gasoline form spilling
out.
As there is remained pressure in the fuel line after
working for prevent gasoline from spilling out, pre-
vent it from splashing inside the vehicle compart-
ment by covering them with a shop rag.

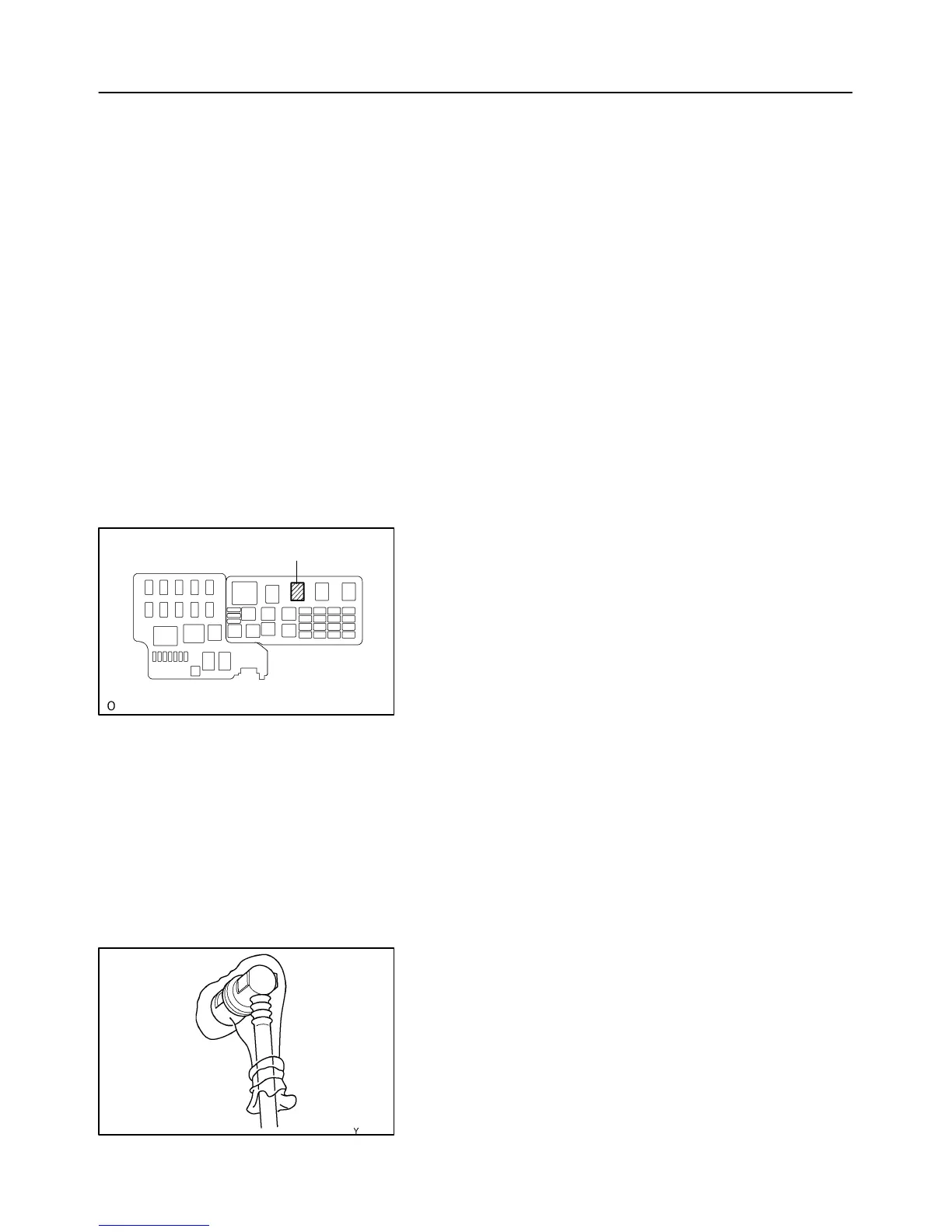

(a) Remove the circuit opening relay in the engine room relay
block.
(b) Start the engine. After the engine has stopped on its own,
turn the ignition switch OFF.
HINT:
There is a case that DTC P0171 (system to lean) is output.
(c) Check that the engine does not start.
(d) Remove the fuel tank cap, and let the air out of the fuel
tank.
(e) Disconnect negative (–) terminal cable from battery.
(f) Reinstall the circuit opening relay.
3. FUEL SYSTEM
(a) When disconnecting the high fuel pressure line, a large
amount of gasoline will spill out, so observe these proce-
dures.
(1) Work for prevent gasoline from spilling out.
(2) Disconnect the fuel pump tube.
(See page 11–39)
(3) Drain the fuel remained inside the fuel pump tube.
(4) Prevent the disconnected fuel pump tube from
damaging and mixing foreign objects by covering
them with a vinyl bag.
