Pulsation Damper
A51983
11–36
–FUEL FUEL INJECTOR ASSY (1MZ–FE)
1480Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
11. INSTALL FUEL PIPE SUB–ASSY NO.1

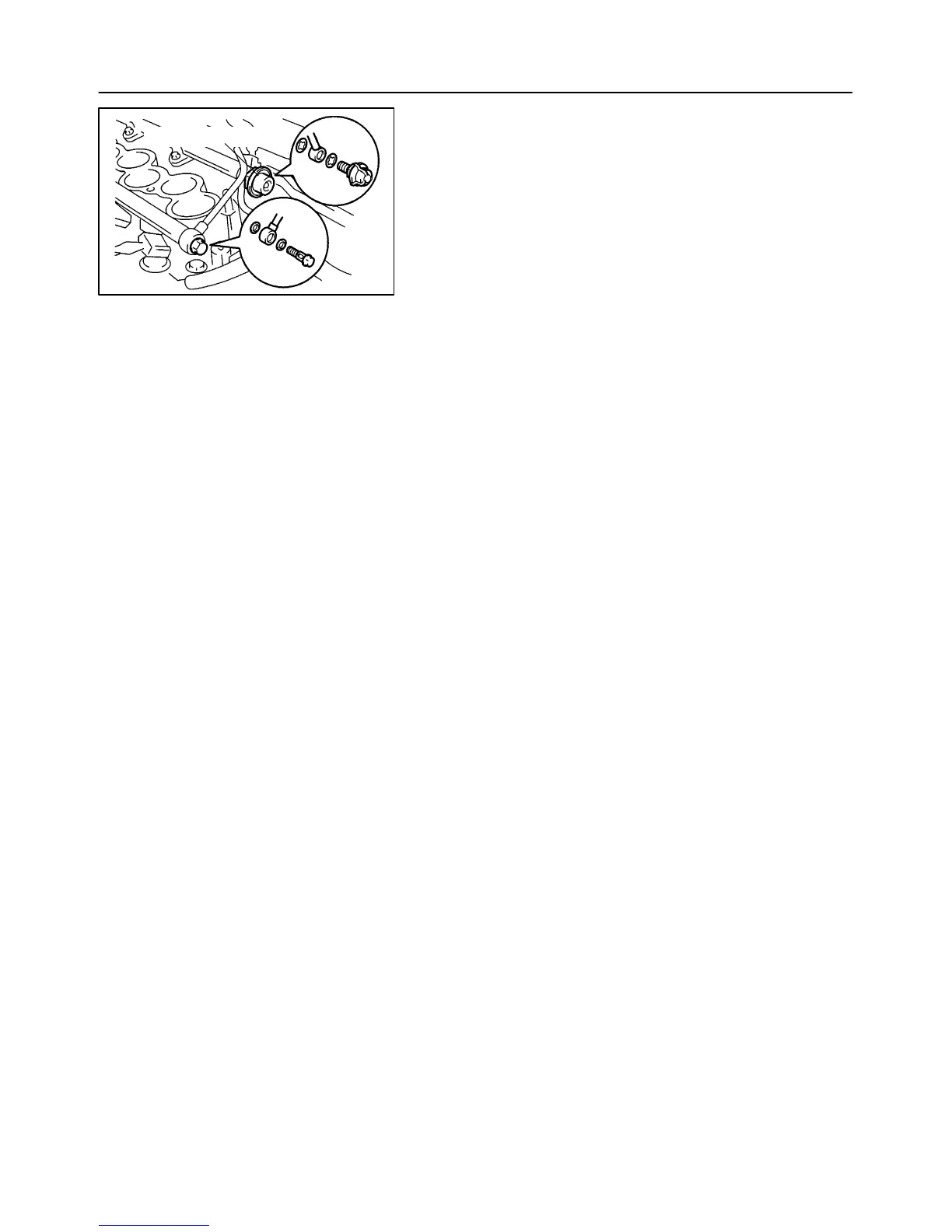

(a) Install the fuel pipe No. 1 with the 2 new pulsation damper
gaskets and the pulsation damper.
Torque: 33 N⋅m (336 kgf⋅cm, 24 ft⋅lbf)
(b) Install the delivery pipe with 2 new fuel pipe No. 1 gaskets
and a bolt to the fuel pipe No. 1.
Torque: 33 N⋅m (336 kgf⋅cm, 24 ft⋅lbf)
(c) Install the fuel pipe No. 1 to the intake manifold with a bolt.
Torque: 20 N⋅m (199 kgf⋅cm, 14 ft⋅lbf)
12. INSTALL INTAKE AIR SURGE TANK
(See page 14–142)
13. INSTALL FRONT SUSPENSION UPPER BRACE CENTER
(W/ FRONT SUSPENSION BRACE UPPER CENTER)
Torque: 80 N⋅m (816 kgf⋅cm, 59 ft⋅lbf)
14. INSTALL AIR CLEANER ASSEMBLY WITH HOSE (See page 10–12)
15. INSTALL V–BANK COVER SUB–ASSY
(See page 14–155)
16. ADD COOLANT (See page 16–20)
17. CHECK ENGINE COOLANT LEAK (See page 16–20)
18. INSPECT FUEL LEAK
